Balance Shaft - Installation

^ Tools Required
- J 23523-F Crankshaft Balancer Remover and Installer
- J 38834 Balance Shaft Bearing Service Kit
- J 36996 Balance Shaft Installer
- J 8092 Universal Driver Handle
- J 36660 Torque/Angle Meter
- Or Equivalents

NOTE: Dip the bearing into clean oil before installation.





1. Use the balance shaft bearing service (J 38834) to install the balance shaft rear bearings.





2. Use the balance shaft installer and the universal driver handle to install the balance shaft.





3. Install the balance shaft retainer.
^ Tighten bolts to 12 Nm (106 inch lbs.).





4. Install the balance shaft driven gear.
^ Tighten in two steps:
- First tighten bolt to 20 Nm (15 ft. lbs.).
- Then use the torque/angle meter to tighten the bolt an additional 35°.





5. Rotate the balance shaft by hand in order to ensure that there is clearance between the balance shaft and the lifter retainer.
6. Rotate the balance shaft key by hand in order to ensure that there is clearance between the balance shaft and the retainer. If the balance shaft does not rotate freely, ensure that the retaining ring on the front bearing is seated on the case.

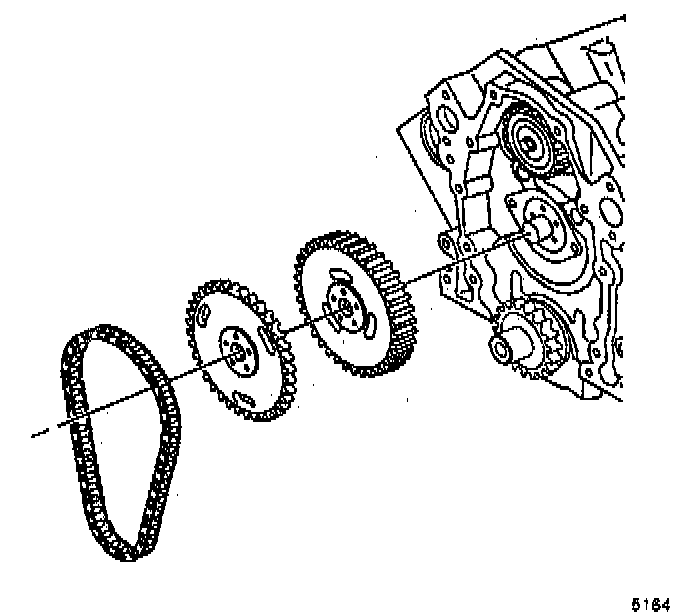

7. Install the balance shaft drive gear but do not install the camshaft bolts at this time.





8. Rotate the camshaft so that the timing mark on the balance shaft drive gear is straight up.





9. Remove the drive gear. Turn the balance shaft so that the timing mark on the driven gear points down.





10. Position the drive gear onto the camshaft.
^ Ensure that the timing marks align.

NOTE: The number four cylinder will be at the top dead center of its compression stroke. When installing the distributor, position the rotor so that it faces the number four terminal.





11. Install the timing chain and the camshaft sprocket.
12. Install the valve lifter retainer.
13. Install the timing chain and the camshaft sprocket.
14. Install the air conditioning condenser. Refer to Heating and Air Conditioning.
15. Install the radiator. Refer to Cooling System.
