Body and Frame
>>
System Diagram
>>
Crossbody Harness to Front of Dash Harness (With RKE)
Crossbody Harness to Front of Dash Harness (With RKE)

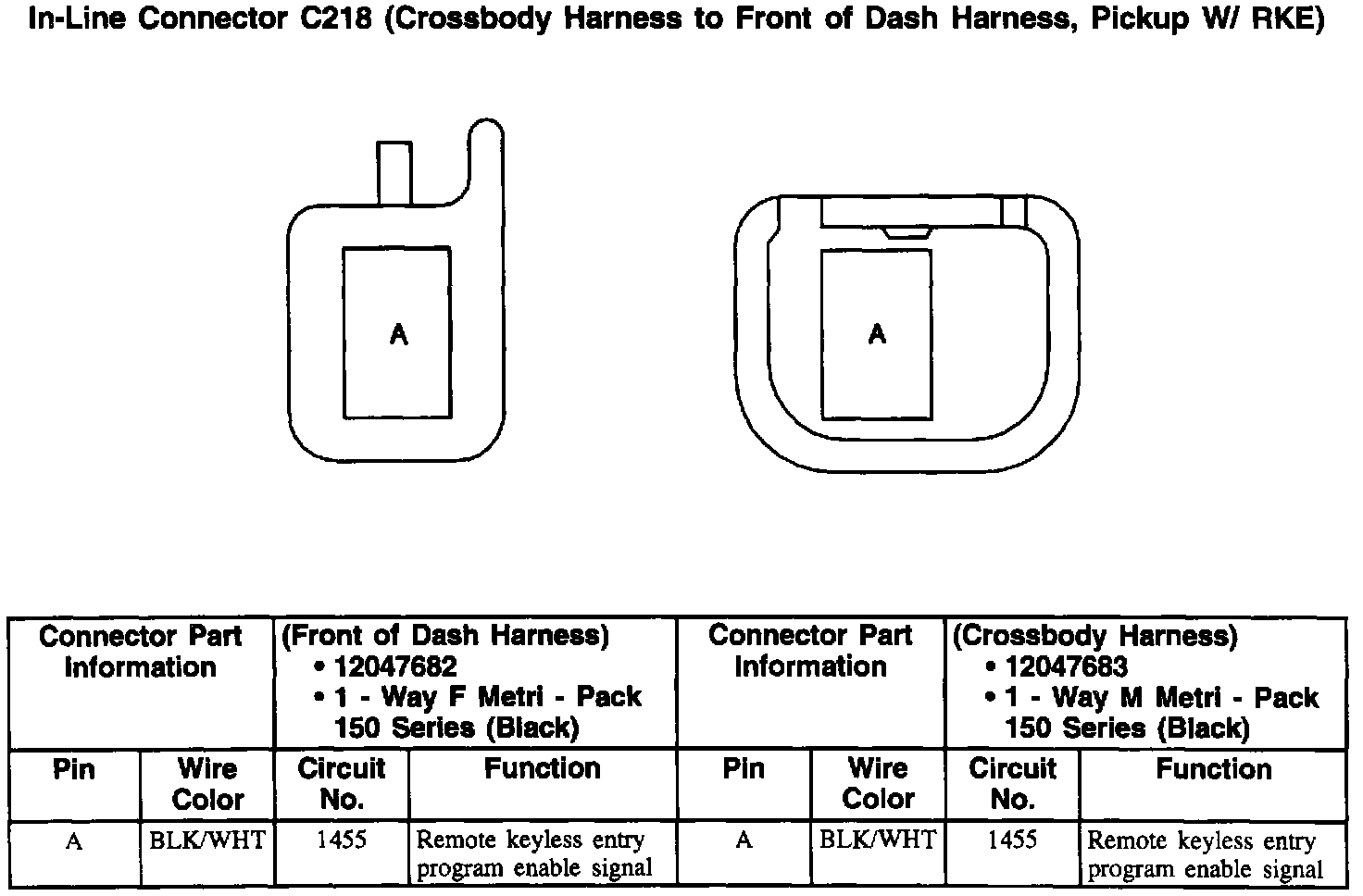

In-Line Connector: C218 (With RKE):
