B1055

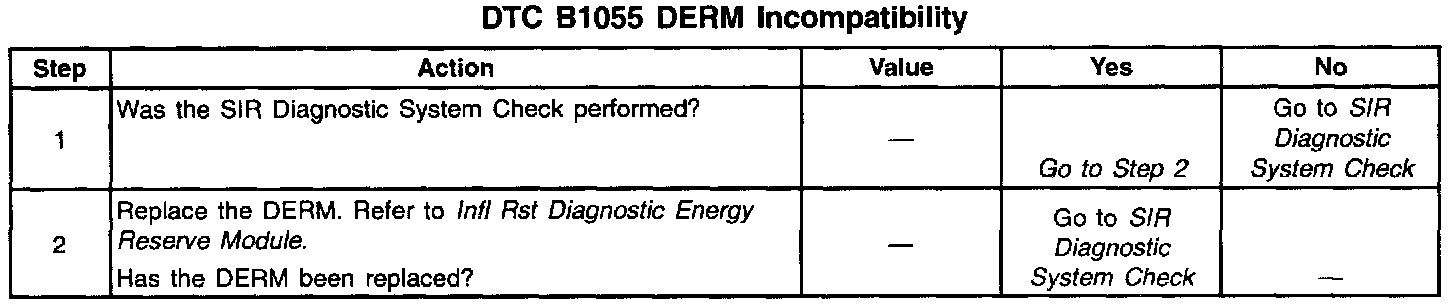

When measurements are requested in this table, use J 39200 Digital Multimeter with correct terminal adapter from J 35616-A Connector Test Adapter Kit. When a check for proper connection is requested, refer to Intermittents and Poor Connections in Diagrams. When a wire, connector or terminal repair is requested, use J 38125-A Terminal Repair Kit and refer to Wiring Repair.

CIRCUIT DESCRIPTION
When Ignition 1 voltage is first applied to the inflatable restraint Diagnostic Energy Reserve Module (DERM), it performs Turn On test followed by Continuous Monitoring test for one second. The DERM monitors the Driver Side Low terminal B8 ensuring that voltage is applied to the inflator module. The DERM monitors Driver Source Sense terminal A5 to ensuring that Driver 36 VLR is supplying voltage to the deployment loop.

CONDITIONS FOR SETTING THE DTC
The conditions described indicate a DERM has been installed in the vehicle. This test runs once each ignition cycle during the initiator assembly resistance test when:
- No higher priority faults are detected during the Turn On test.
- No higher priority faults are detected during Continuous Monitoring tests for one second.
- No Crank signal is present.
- Ignition 1 voltage is above a specified value.

ACTION TAKEN WHEN THE DTC SETS
The DERM turns on the AIR BAG warning lamp and sets a diagnostic trouble code.

CONDITIONS FOR CLEARING THE DTC
The ignition switch is turned OFF.
