Inner Mounting Panel Assembly

Remove or Disconnect

^ Lower Window
1. Trim panel.
2. Water deflector.
3. Speaker (if equipped)
^ Carefully pry out retainer clips.

Front Door Inner Handle Assembly:

4. Inner panel bolts.

Inner Mounting Panel & Window Sash:

5. Lock rods from lock handle, lock lever, and lock rod guides.
6. Wiring harness.

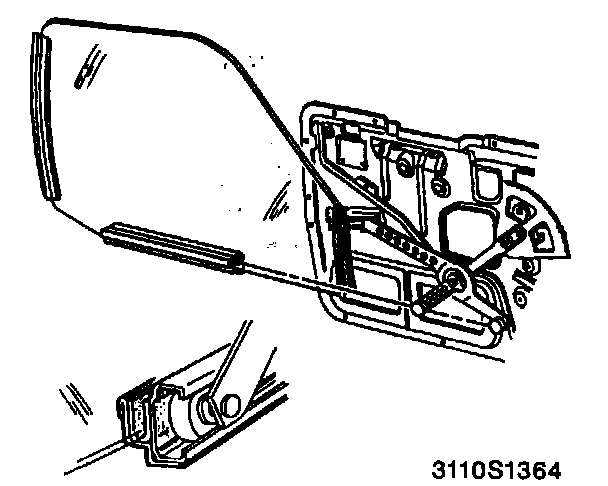

7. Inner mounting panel from window sash.
^ Slide inner mounting panel rearward to release regulator roller from window sash.

Install or Connect

1. Inner mounting panel to window sash.
^ Slide inner mounting panel forward to release regulator roller from window sash.
2. Wiring harness.
3. Lock rods to lock handle, lock lever, and lock rod guides.
4. Inner panel bolts.
5. Speaker (if equipped).
6. Trim panel.
^ Carefully pry out retainer clips.
7. Water deflector.
