Home >> Chevy Truck >> 1997 >> K 2500 Suburban 4WD V8-5.7L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Control Assembly, HVAC >> Heater and A/C Control Switch >> C3

C3

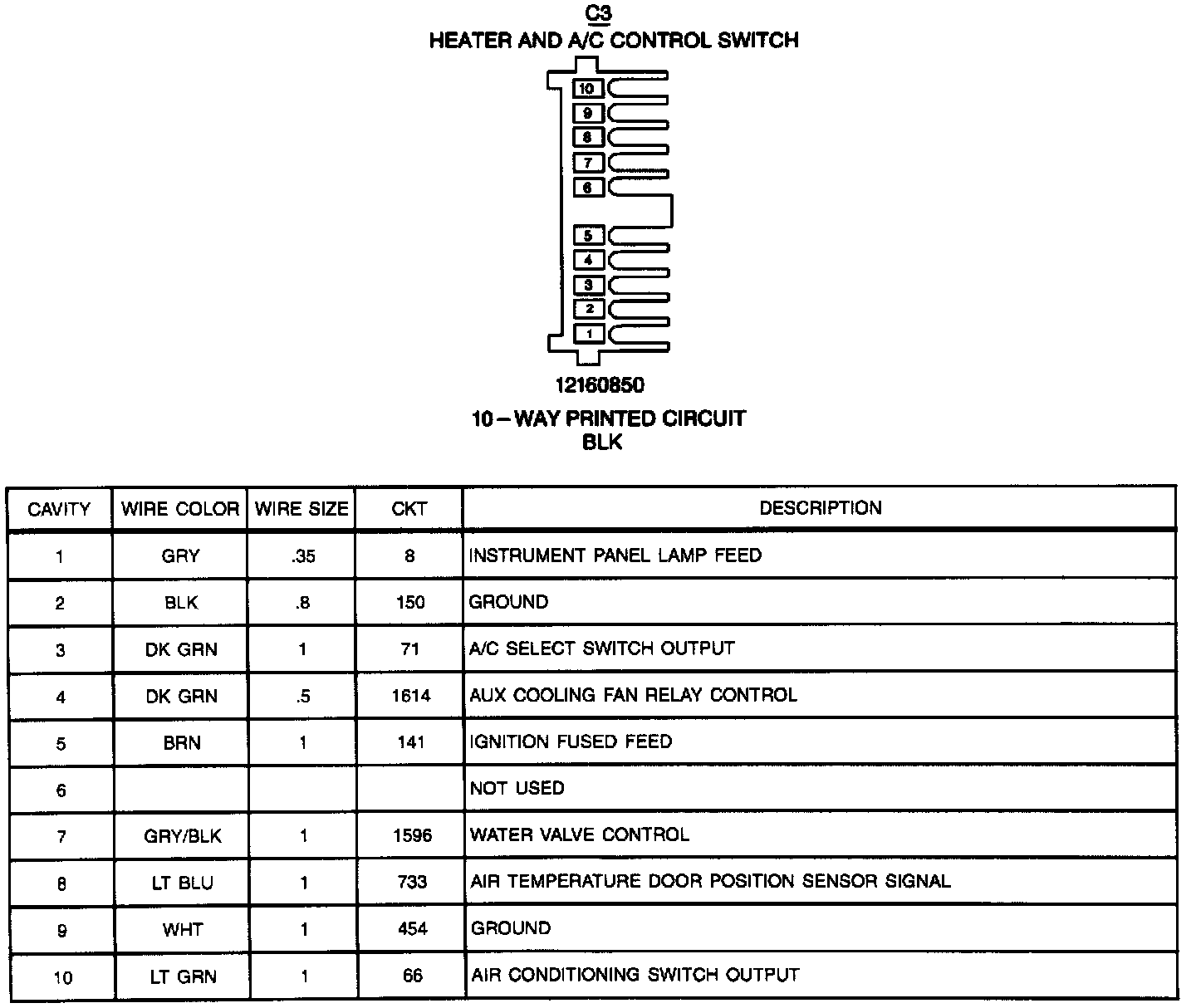

Heater And A/C Control Switch: C3:
