Front Engine Plate: Service and Repair

REMOVAL

NOTE: Any time the engine composite front cover is removed, the cover needs to be replaced upon reassembly. If the cover that was removed is reinstalled, oil leaks may develop.





1. Remove the crankshaft balancer (external).
2. Remove the water pump.
3. Remove the crankshaft position sensor.
4. Loosen the oil pan and drop down.

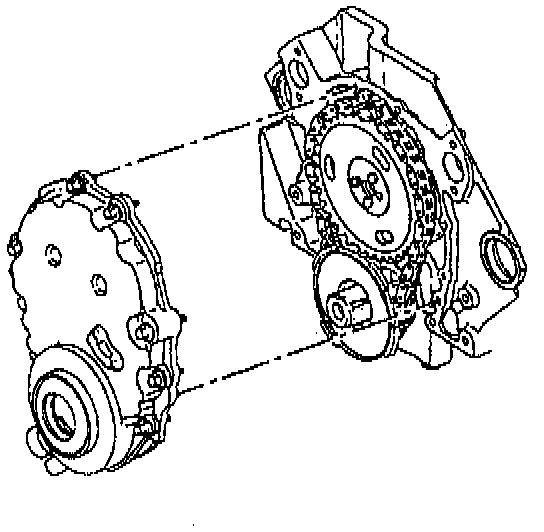

5. Remove the engine front cover bolts.

NOTE: Use care when removing the engine front cover from the front of the oil pan seal.

6. Clean the varnish and sludge build up from the engine front cover area.

INSTALLATION
1. Install RTV to the lower corners of the front cover to aid in sealing.
2. Install a new front cover and bolts. Use care when engaging the front of the oil pan sealing surface and gasket with the bottom of the front cover.
- Tighten the front cover to block bolts to 12 Nm (106 inch lbs.).
3. Install the crankshaft position sensor.
4. Install the water pump.
5. Install the crankshaft balancer.
