Home >> Chevy Truck >> 1997 >> C 3500 Truck 2WD V8-6.5L DSL Turbo VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine >> System Diagram >> Engine to I/P

Engine to I/P

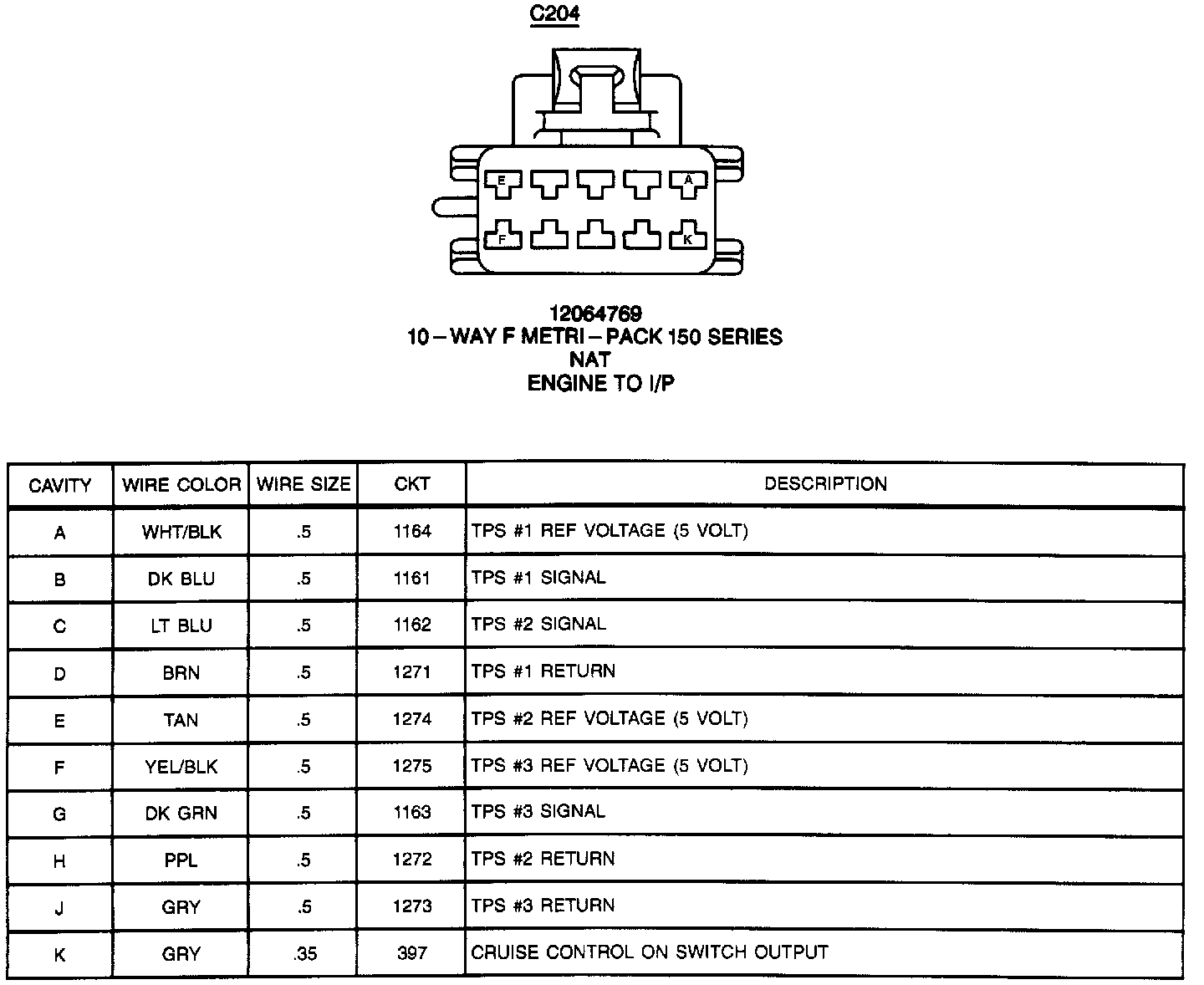

Engine To I/P: C204:
