Home
>>
Chevy Truck
>>
1996
>>
S10/T10 P/U 4WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
Mirrors
>>
System Diagram
>>
Lighted Vanity Mirror
Lighted Vanity Mirror

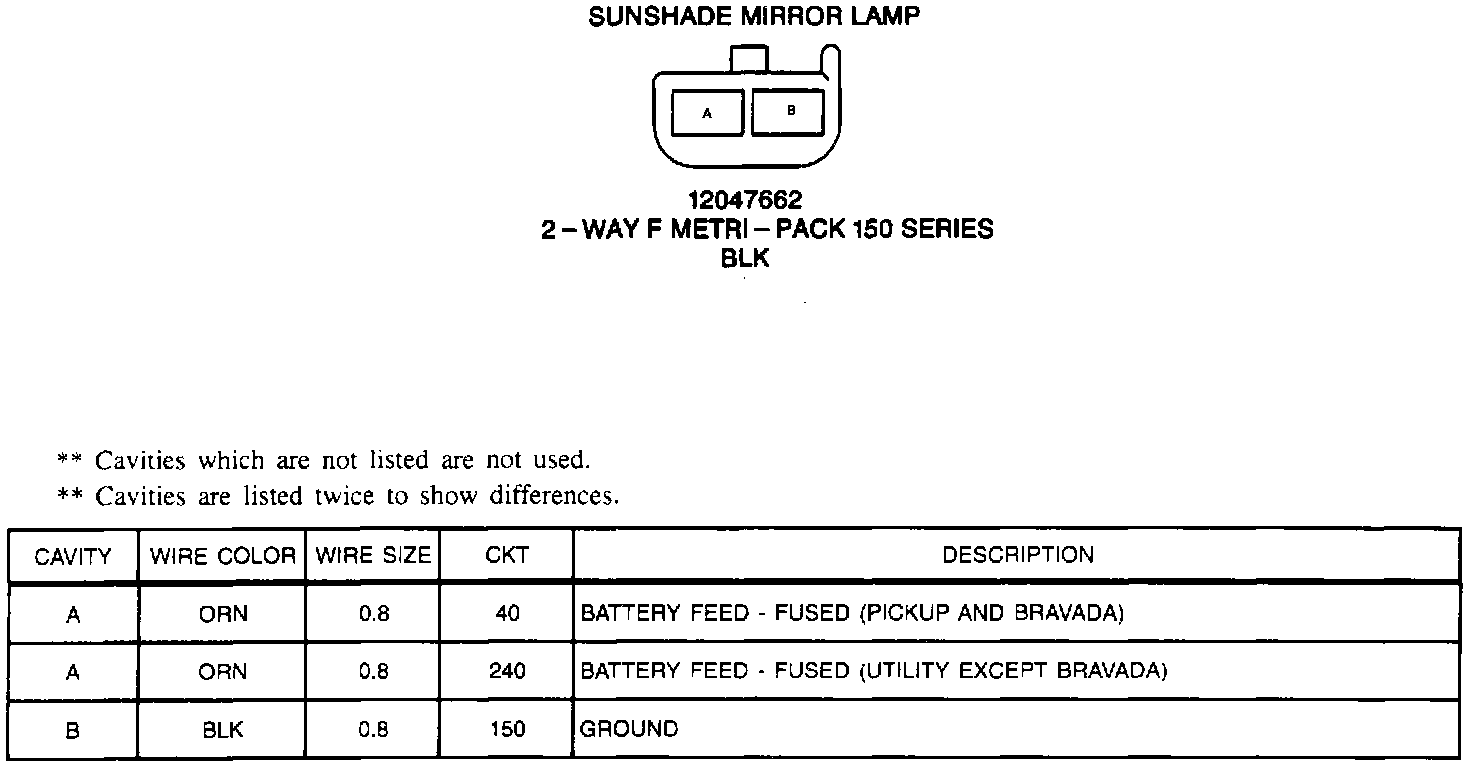

Sunshade Mirror Lamp:
