Home >> Chevy Truck >> 1996 >> S10/T10 P/U 2WD V6-4.3L VIN X >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> PWR Aux Fuse 7

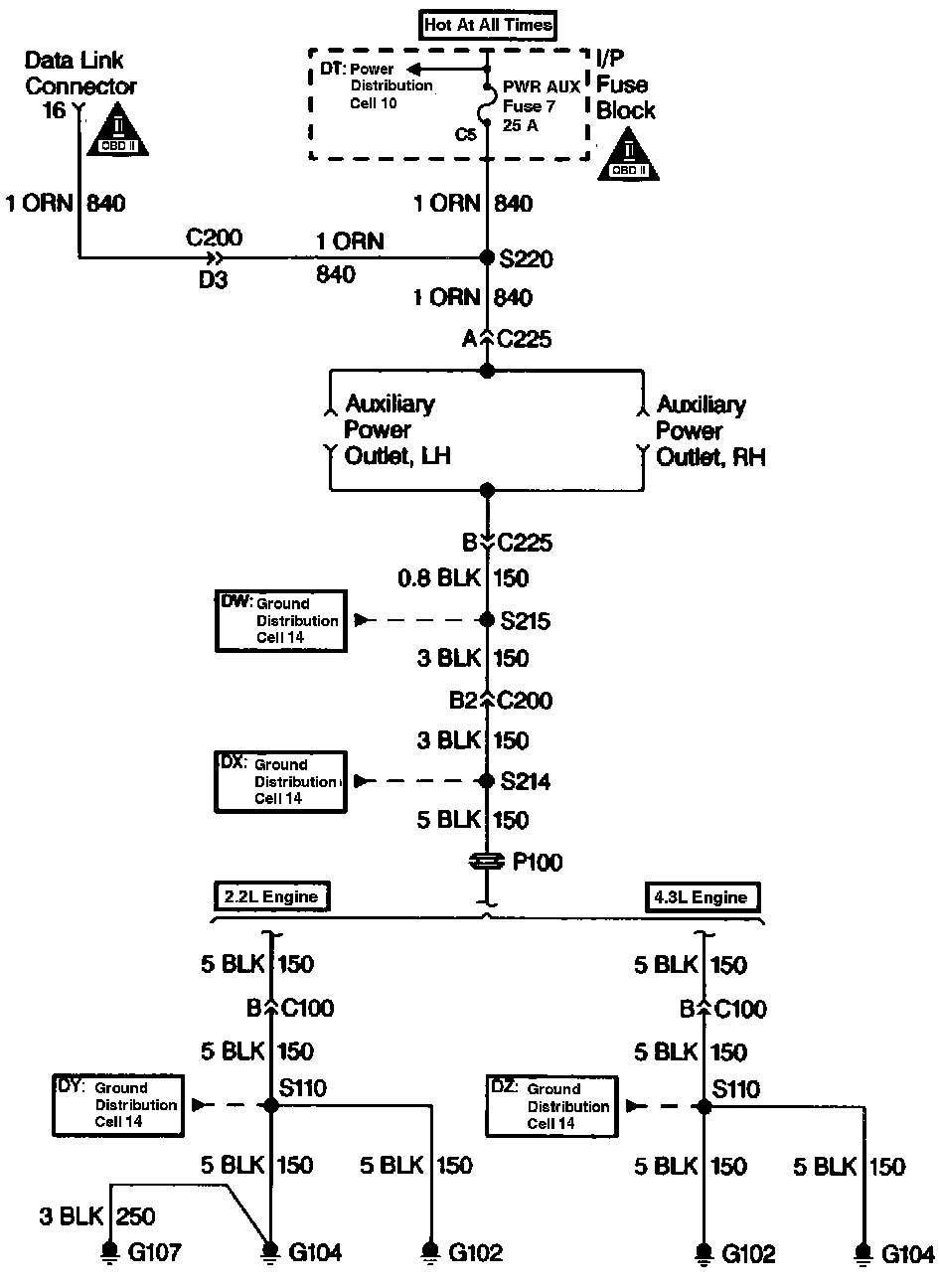

PWR Aux Fuse 7

PWR AUX Fuse 7:
