Home
>>
Chevy Truck
>>
1996
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Lighting and Horns
>>
Marker Lamp
Marker Lamp

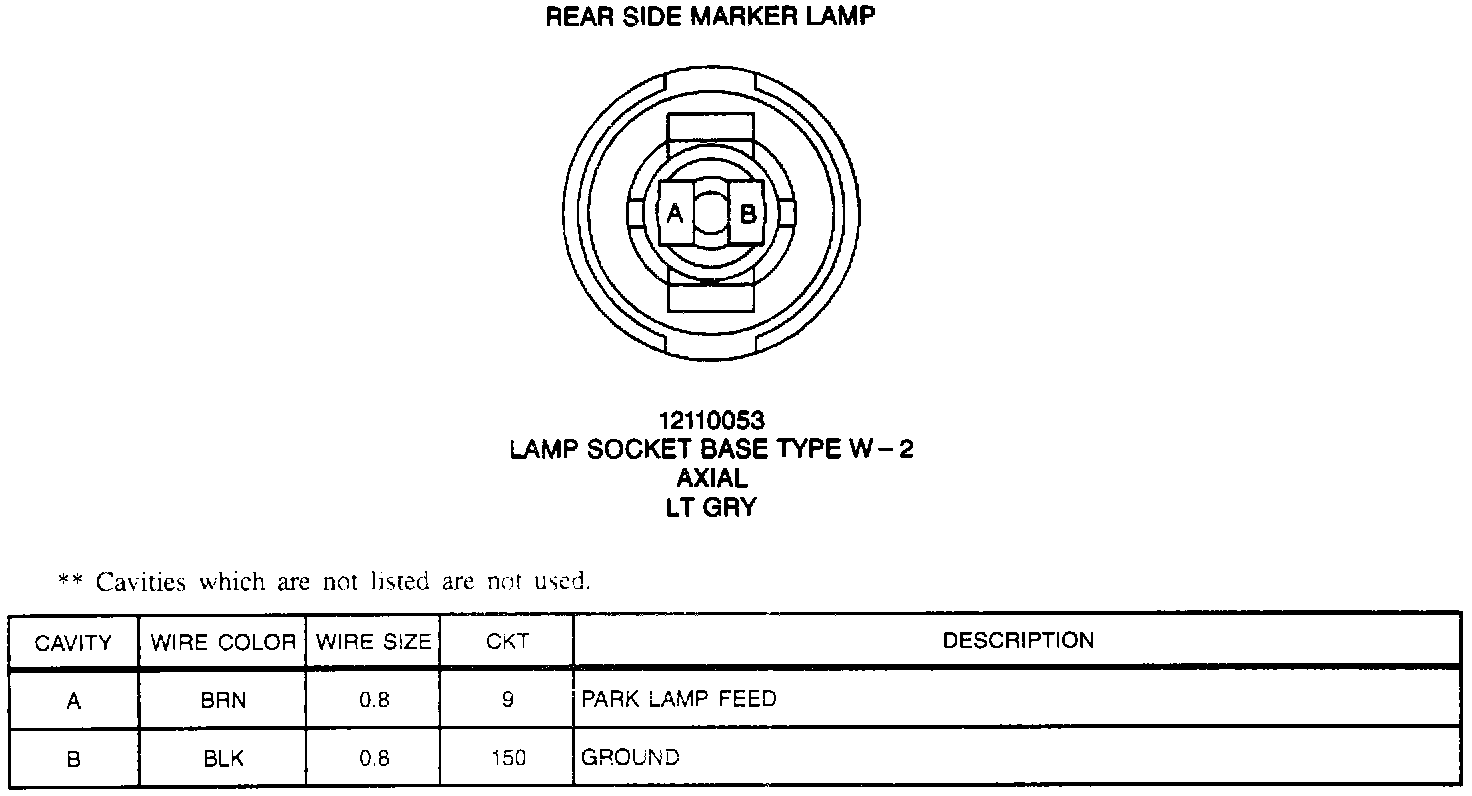

Rear Side Marker Lamp:

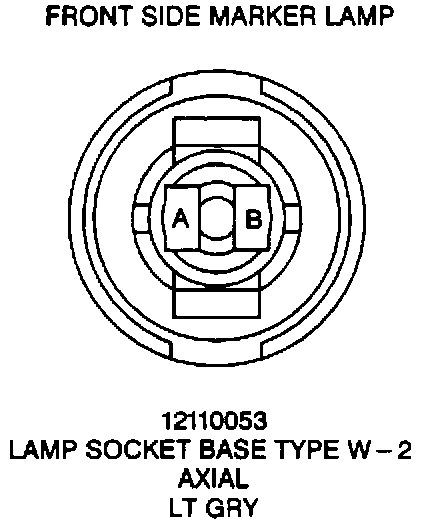

Front Side Marker Lamp:
Front Side Marker Lamp (Part 1 Of 2):
Front Side Marker Lamp (Part 2 Of 2):
