Home
>>
Chevy Truck
>>
1996
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
System Diagram
>>
Front of Dash Harness/Crossbody Harness
Front of Dash Harness/Crossbody Harness

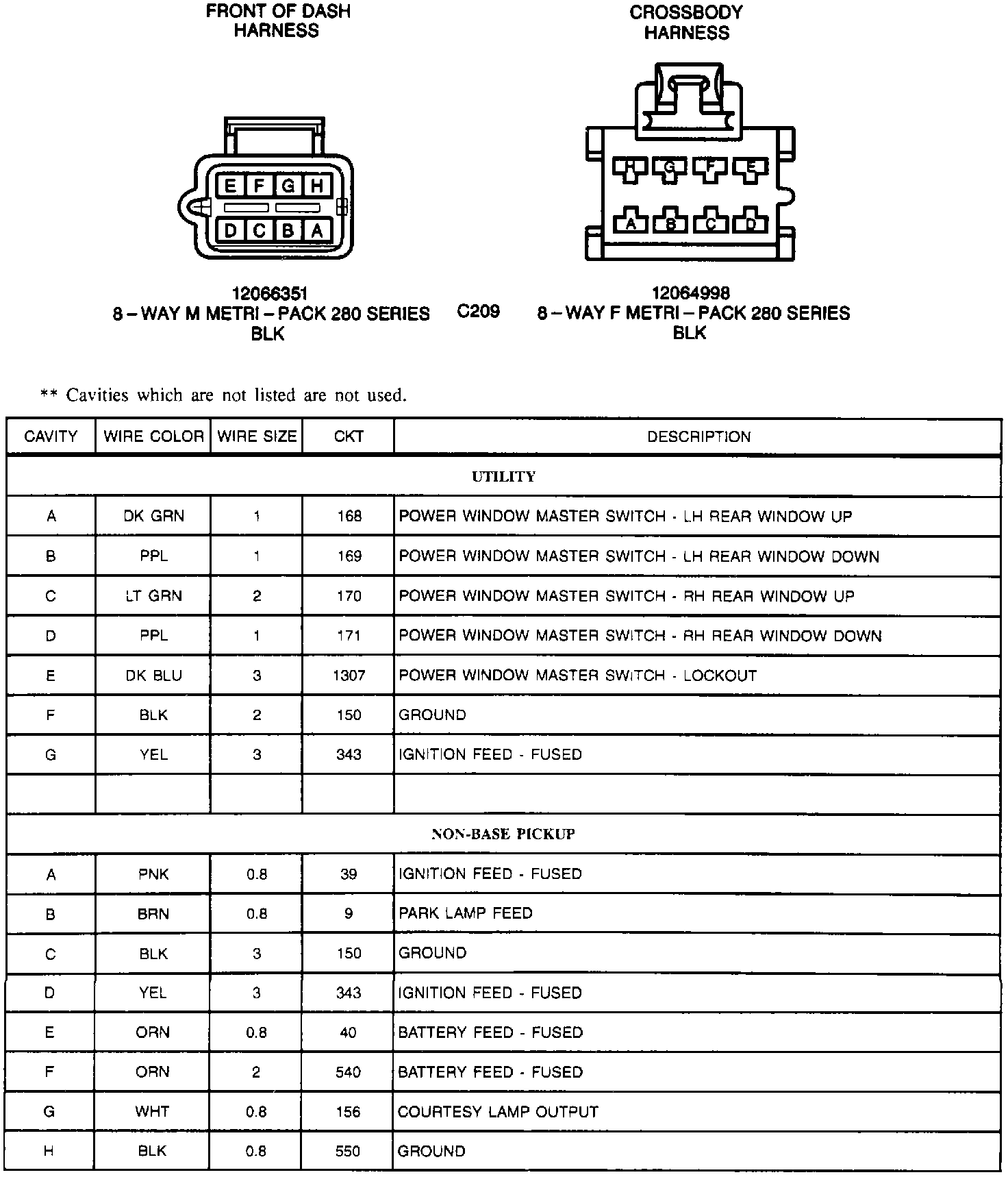

C209: Front Of Dash Harness:
