Chevy Truck
>>
1996
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body and Frame
>>
System Diagram
>>
Crossbody Harness/RH Front Door Harness
Crossbody Harness/RH Front Door Harness

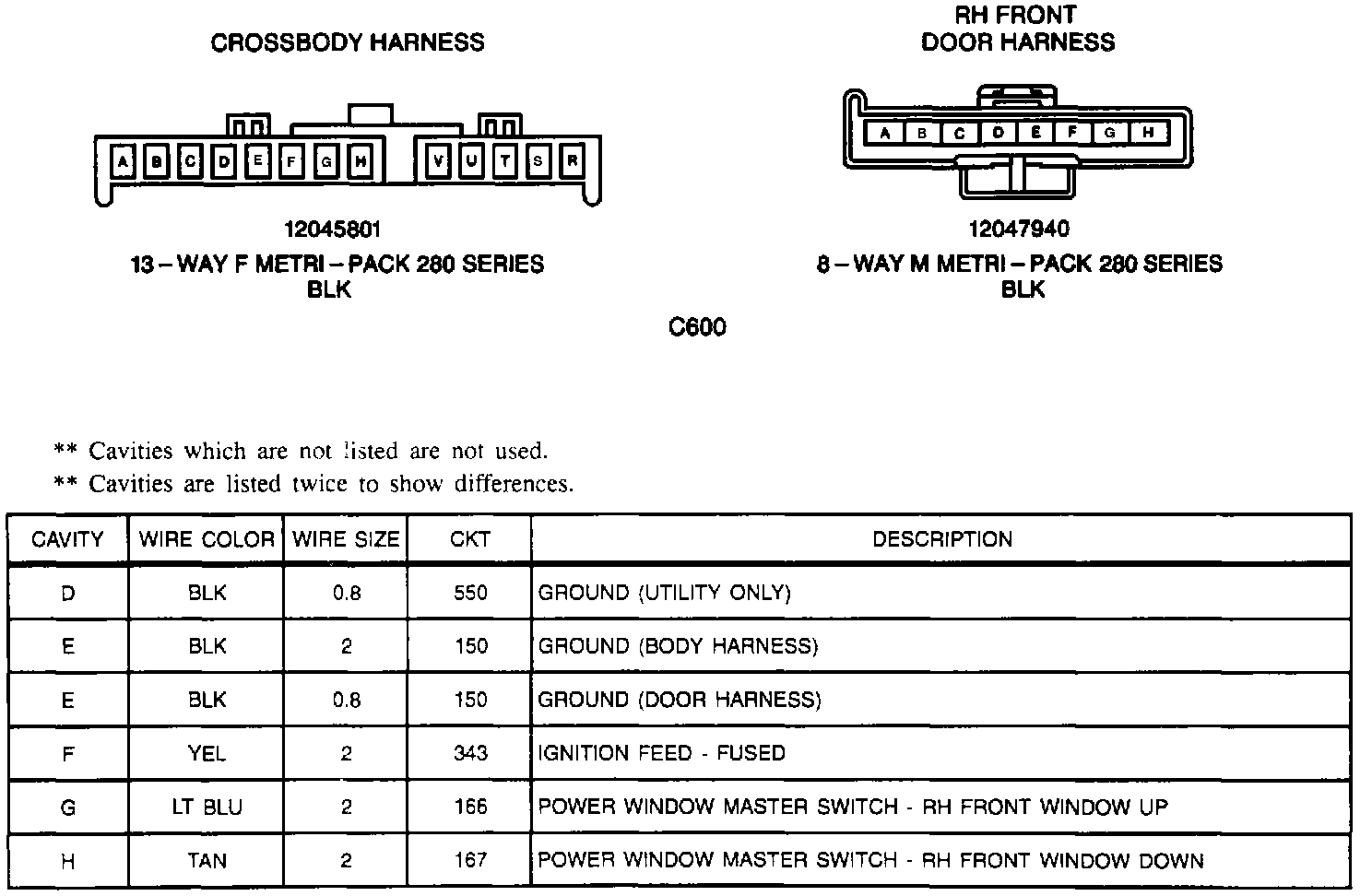

C600: Crossbody Harness:
