System Check

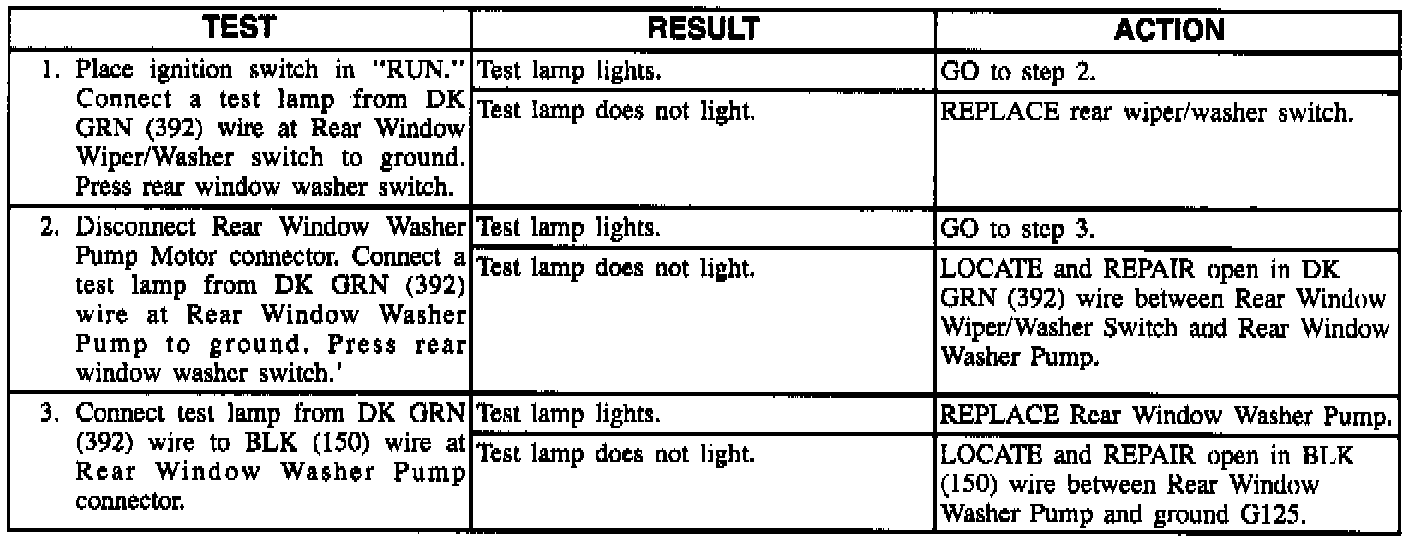

Fig. 123 Rear Wiper/Washer System Diagnosis (Part 1 Of 2).:




Fig. 123 Rear Wiper/Washer System Diagnosis (Part 2 Of 2).:
