Home >> Chevy Truck >> 1996 >> S10/T10 Blazer 2WD V6-4.3L VIN W >> Repair and Diagnosis >> Diagrams >> Connector Views >> Lighting and Horns >> Fog/Driving Lamp >> System Diagram >> Fog Lamp Bulb, Front

Fog Lamp Bulb, Front

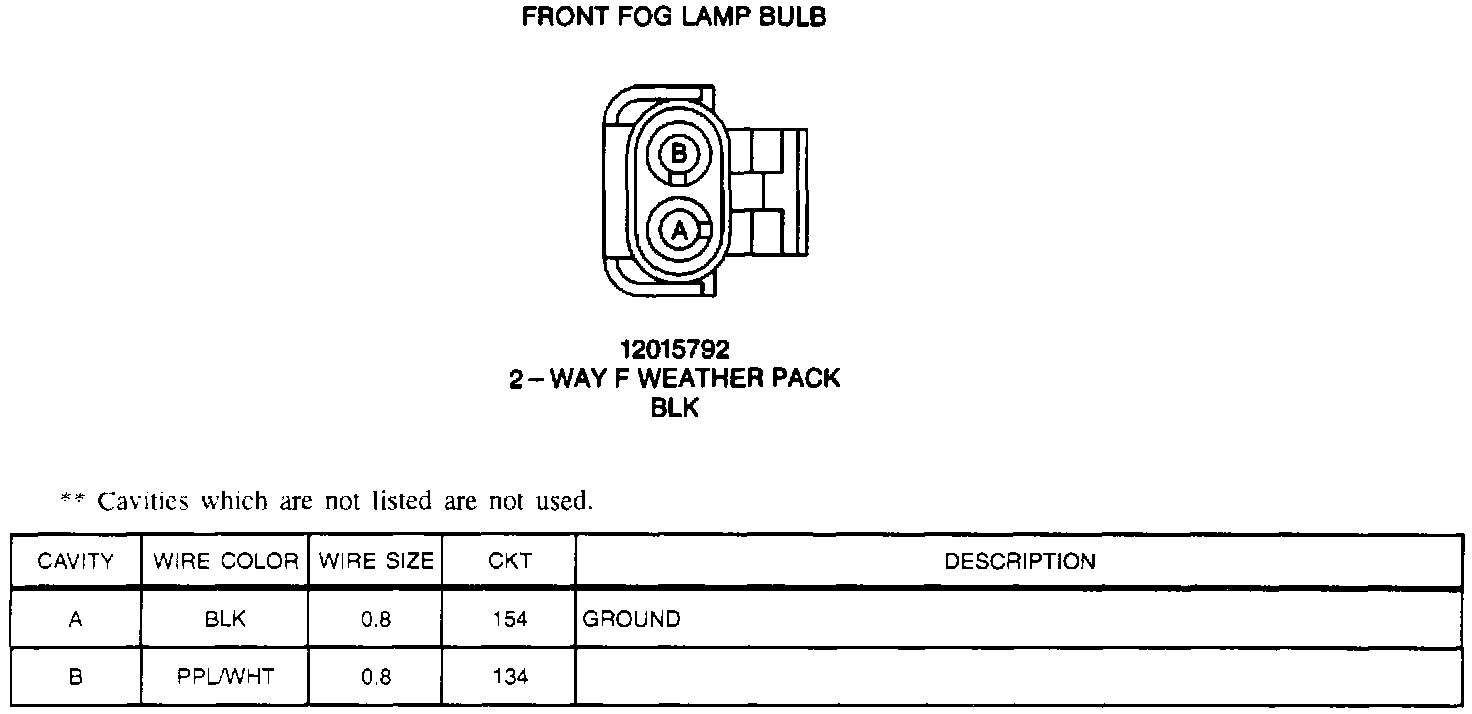

Front Fog Lamp Bulb:
