DTC 3, or 1 and 3

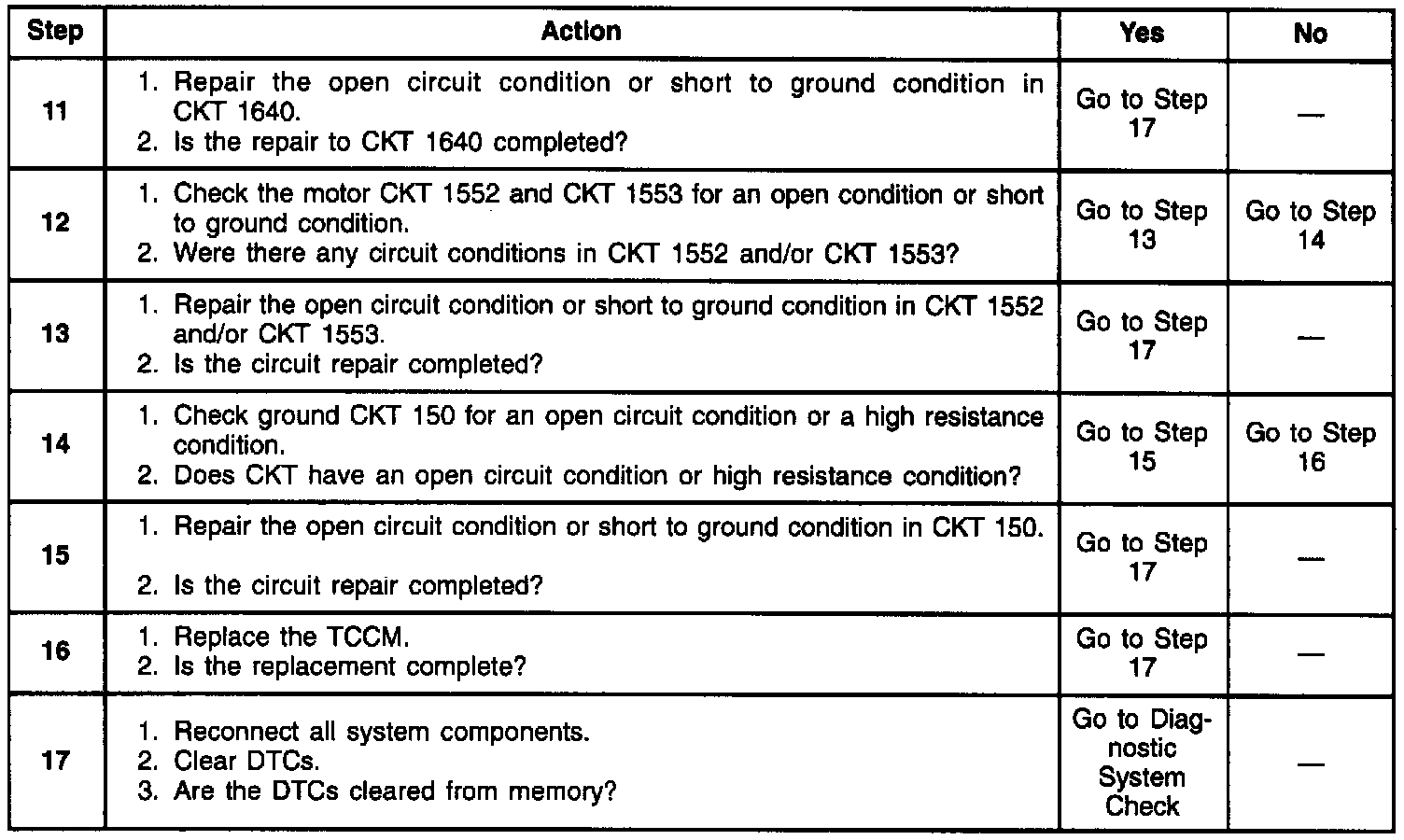

Fig. 38 Code 3 Or Codes 1 & 3: TCCM Motor Failure (Part 1 Of 2):



Fig. 38 Code 3 Or Codes 1 & 3: TCCM Motor Failure (Part 2 Of 2):
