G103

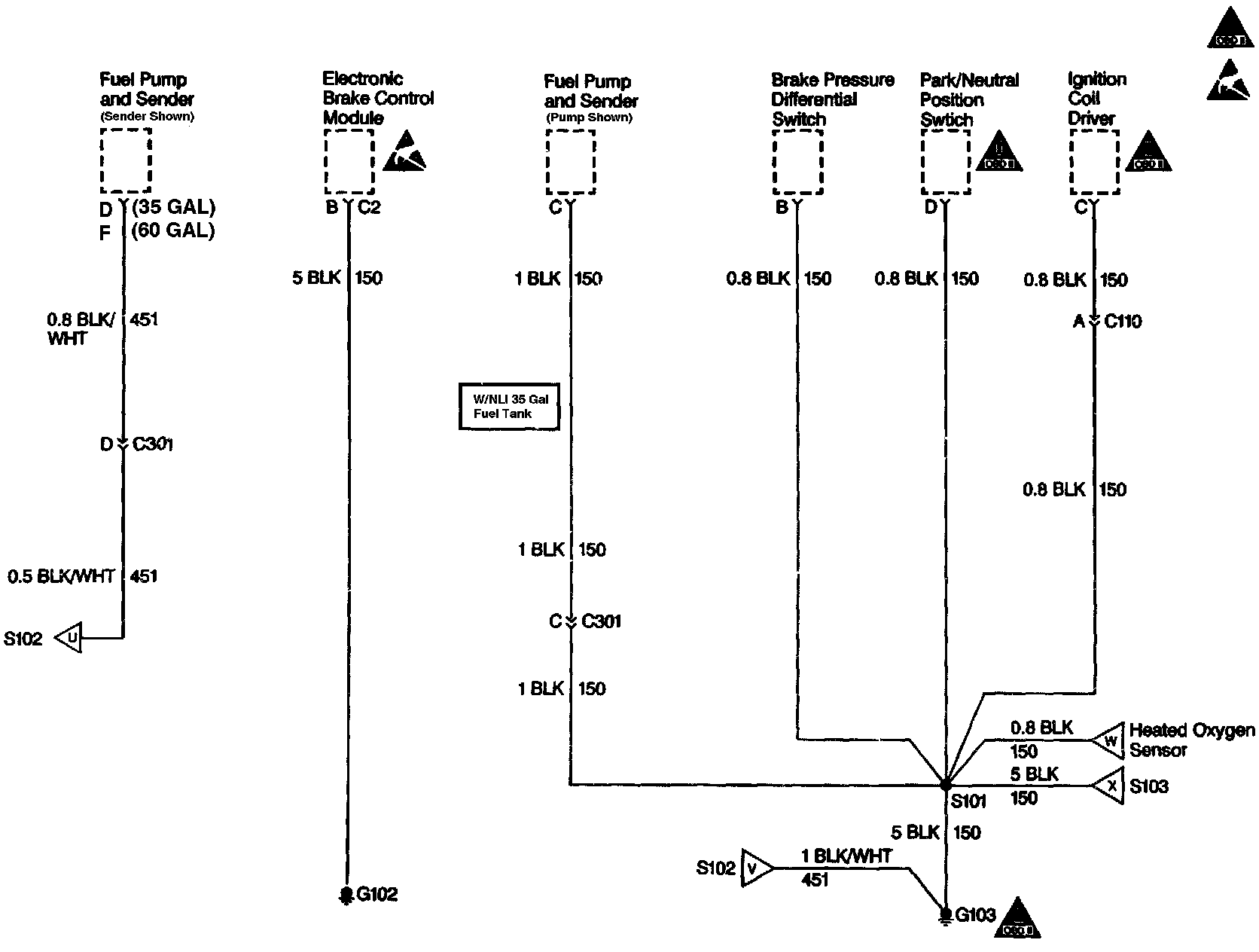

G102, G103 L30/L31 (Part 1 Of 3):




G102, G103 L30/L31 (Part 2 Of 3):




G102, G103 L30/L31 (Part 3 Of 3):
