Home
>>
Chevy Truck
>>
1996
>>
G 20 Van V8-305 5.0L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Actuator
>>
Diagrams
>>
Side Door Lock Actuator
Side Door Lock Actuator

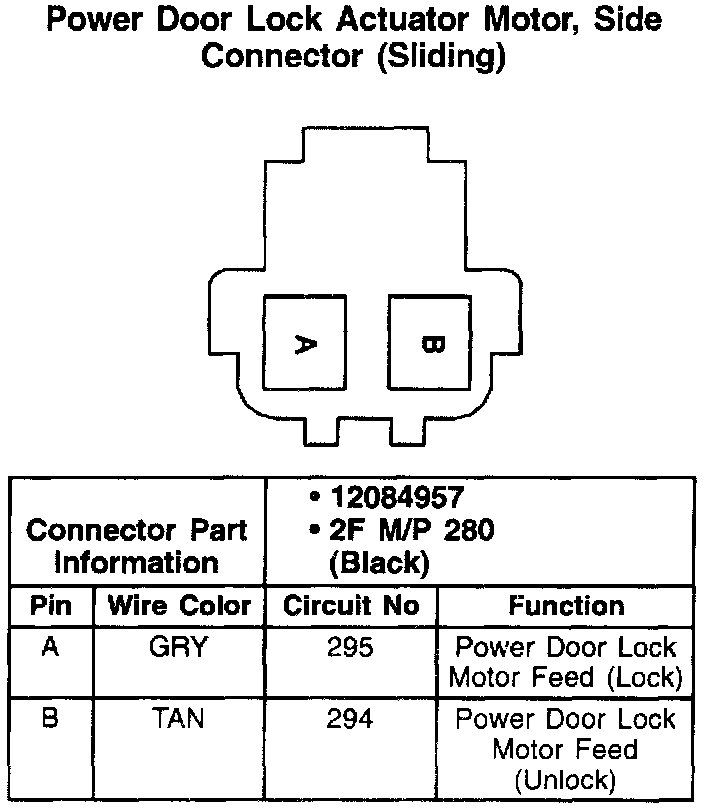

Power Door Lock Actuator Motor, Side Connector (Sliding):
