Home
>>
Chevy Truck
>>
1996
>>
G 10 Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Transmission Controls
>>

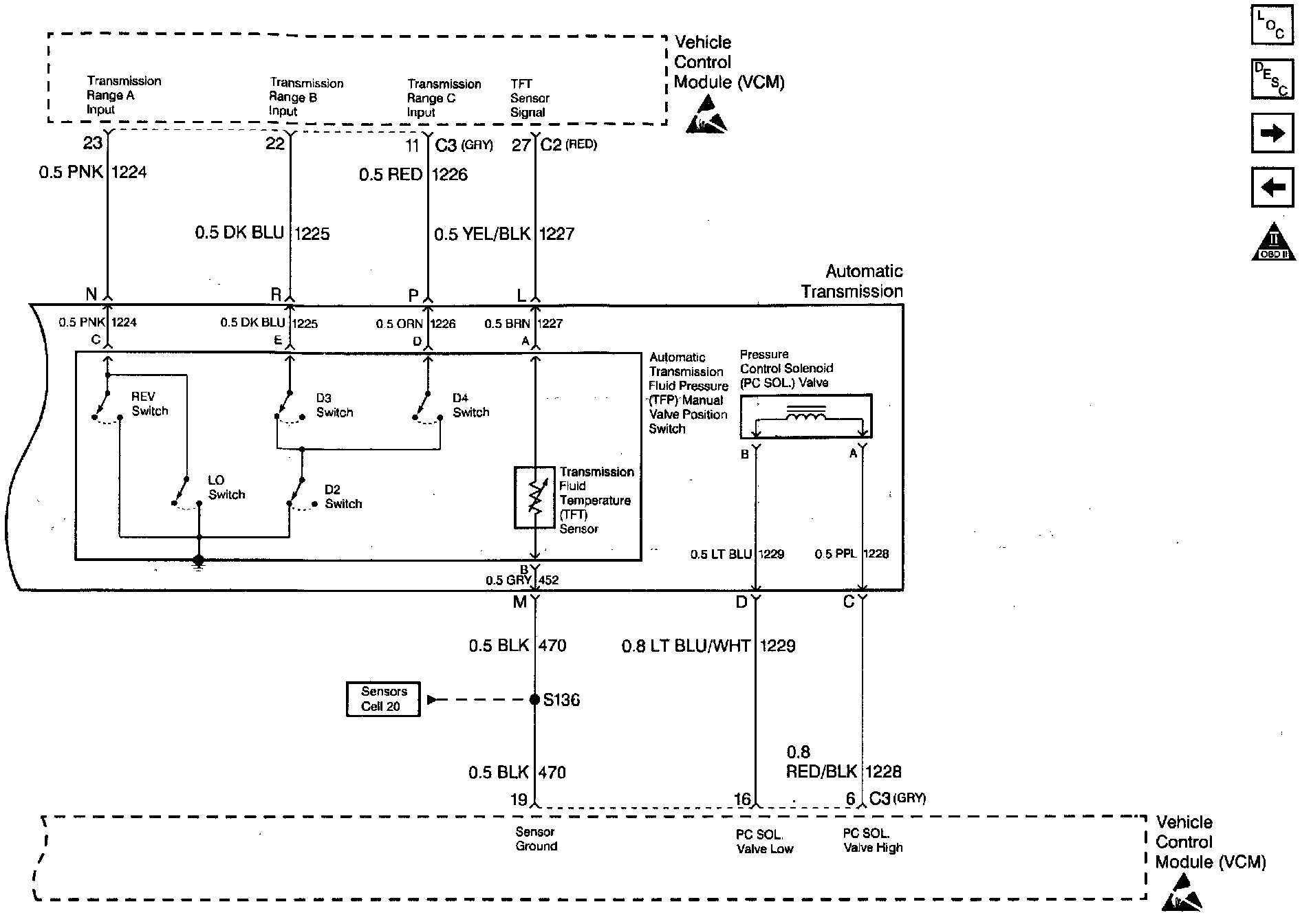

A/T, PC Solenoid TFP
A/T, PC Solenoid TFP
With 4L60 Transmission:
