Removal

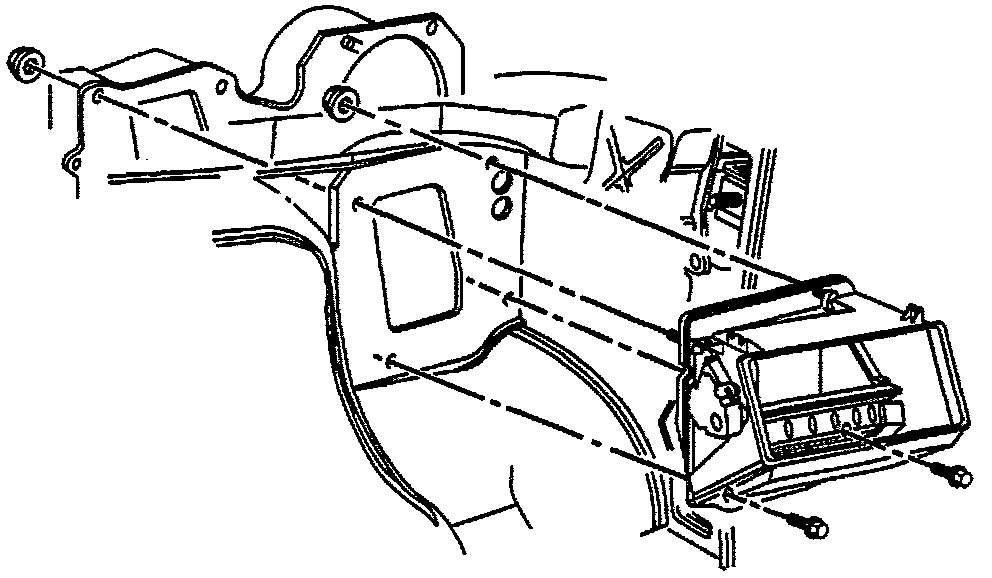

Heater Assembly:

Heater Hoses:

REMOVE OR DISCONNECT
1. Engine coolant.
2. Heater hoses.
3. Screws retaining cover to heater assembly.
4. Screws and straps retaining heater core to the heater assembly.
5. Core from the vehicle.
