Bulkhead Connector

C100: Bulkhead Connector:



C100: Bulkhead Connector (Part 1 Of 2):

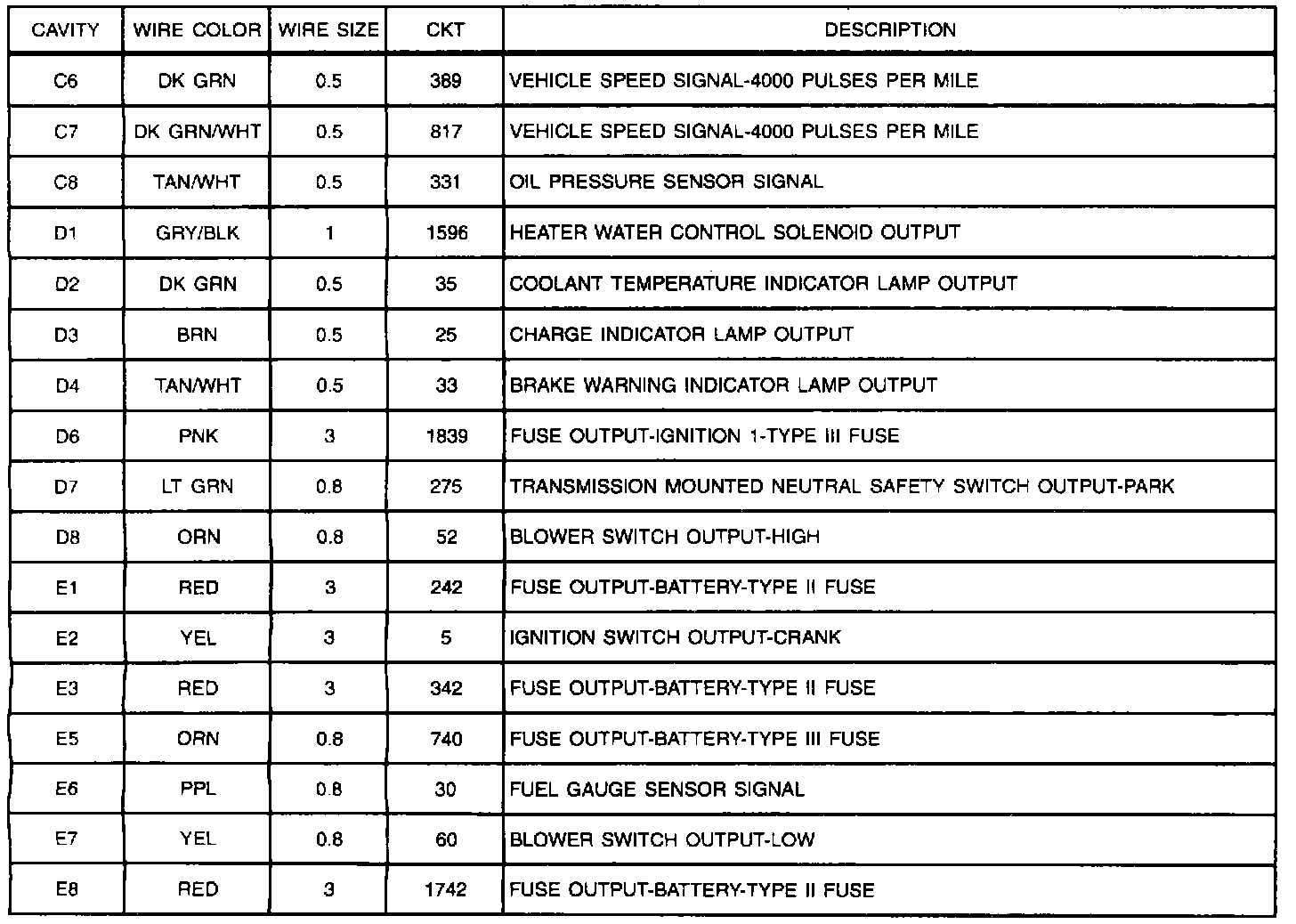

C100: Bulkhead Connector (Part 2 Of 2):
