Right Side

Glow Plugs (Right Side Turbo):

REMOVE OR DISCONNECT
1. Negative battery cable.

^ Raise the vehicle.

2. Right front tire.
3. Splash shield from the right front wheel well.
4. Lead wire from the glow plug in the #2 cylinder.
5. Lead wires for glow plugs in cylinders #4 and #6 at the harness connectors.

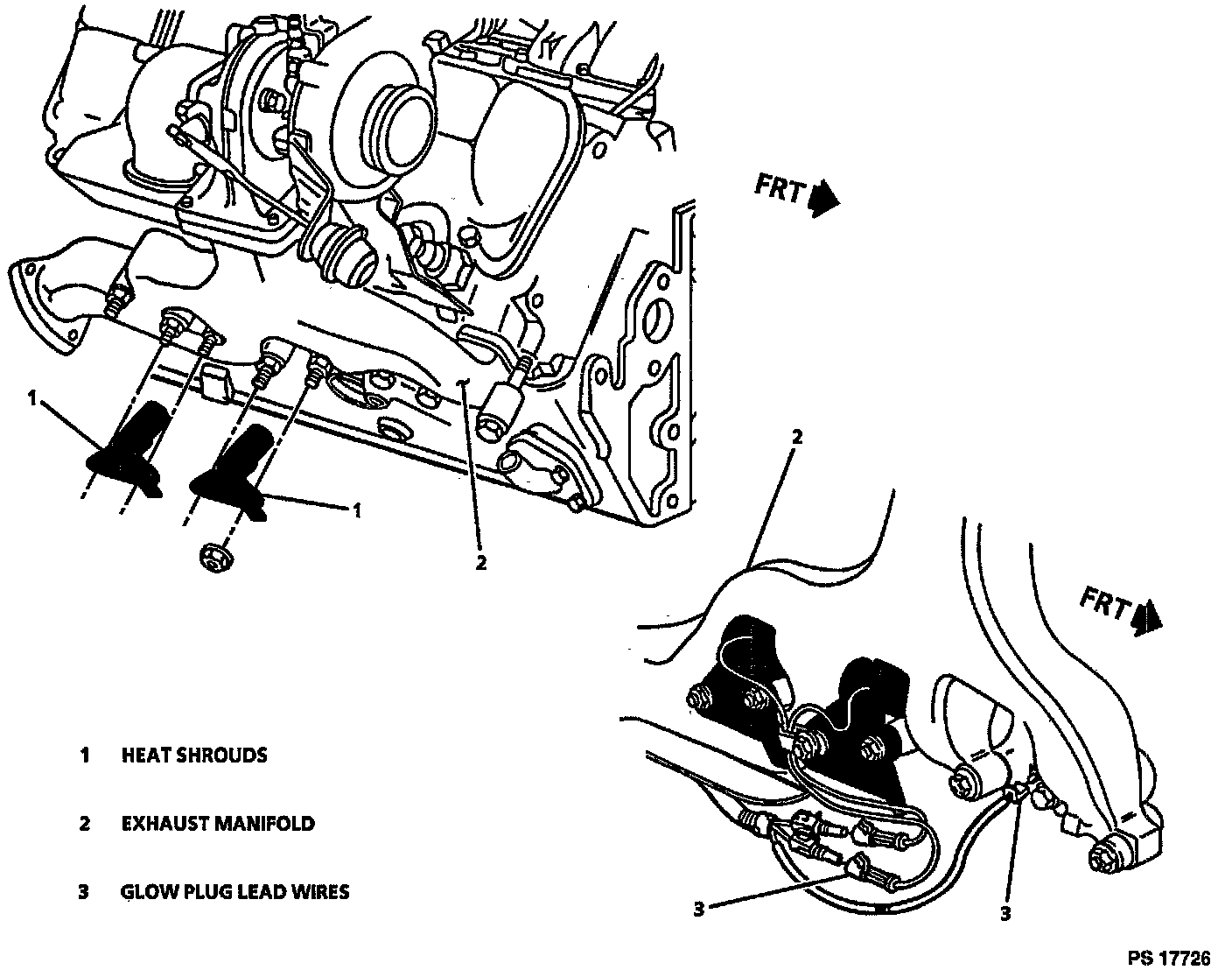

6. Heat shroud for the glow plug in the #4 cylinder.
7. Heat shroud for the #6 cylinder.

^ Slide the shrouds back far enough to allow access for unplugging the wires at the #4 and #6 glow plugs.
^ Use J 39083 to disconnect the glow plug wires.

8. Glow plugs from cylinders #2, #4, and #6.
9. Lead wire at the glow plug from cylinder #8 by reaching up from underneath the vehicle.
10. Glow plug from cylinder #8.

^ For easier access to cylinders #6 and #8, it may be necessary to remove the exhaust down pipe from turbocharger and muffler inlet pipe.

INSTALL OR CONNECT
1. Glow plug into cylinder #8.

Tighten

^ Glow plug to 17 Nm (13 lb. ft.).

2. Lead wire to #8 glow plug.
3. Glow plugs into cylinders #2, #4, and #6.

^ Install the glow plugs by reaching through the right wheel well.

Tighten

^ Glow plugs to 17 Nm (13 lb. ft.).

4. Lead wire to glow plug #6.

^ Slide the shroud over the wire lead and fasten to the studs.

- Repeat Step 4 for the #4 glow plug.

Tighten

^ Heat shroud nuts to 23 Nm (17 lb. ft.).

5. Wires for glow plugs #4 and #6 to connectors at the wire harness.
6. Lead wire for #2 glow plug.

INSPECT

^ Wire routing, making sure the lead wires are not rubbing against the exhaust manifold or any part that may harm the wire insulation.

7. Splash shield in the right wheel well.
8. Right front tire.

^ Refer to Wheel and Tires/Steering and Suspension for lug nut torque.
