Chevy Truck
>>
1995
>>
Lumina APV V6-191 3.1L VIN D TBI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Diagrams
>>
Electrical Diagrams
>>
Without Keyless Entry
Without Keyless Entry

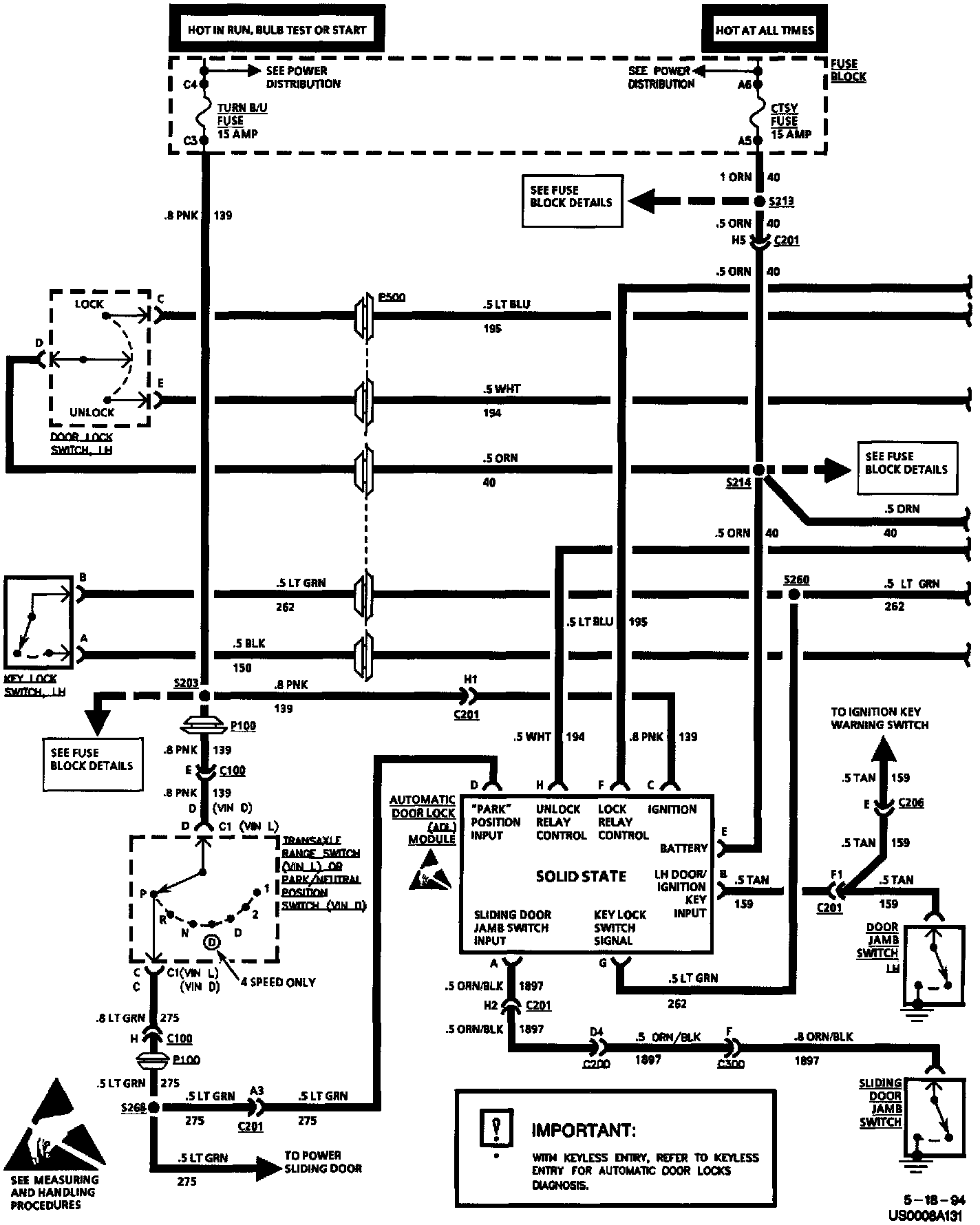

Automatic Door Locks (Without Keyless Entry, AUO) (Part 1 Of 2):

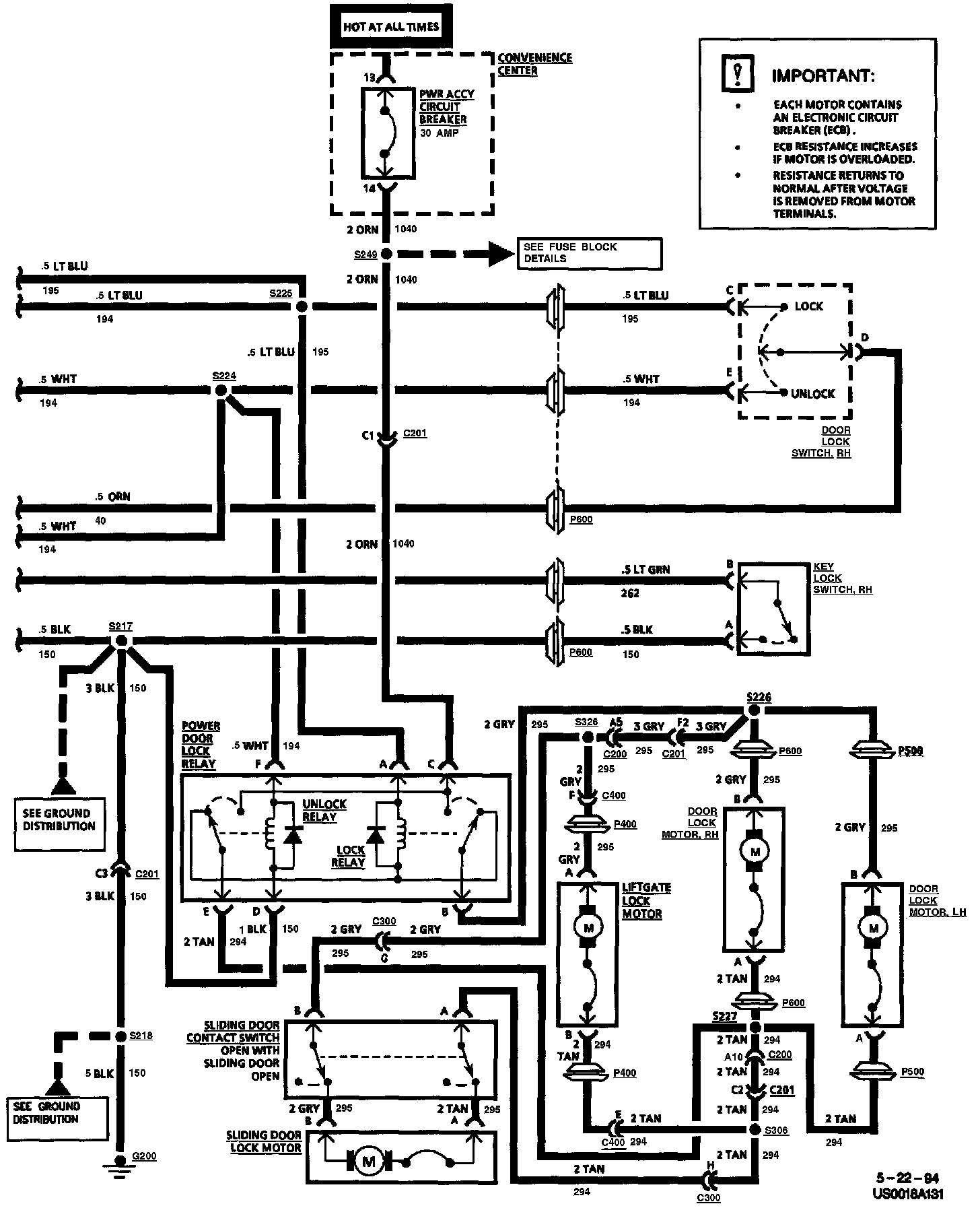

Automatic Door Locks (Without Keyless Entry, AUO) (Part 2 Of 2):
