Without High Output Engine

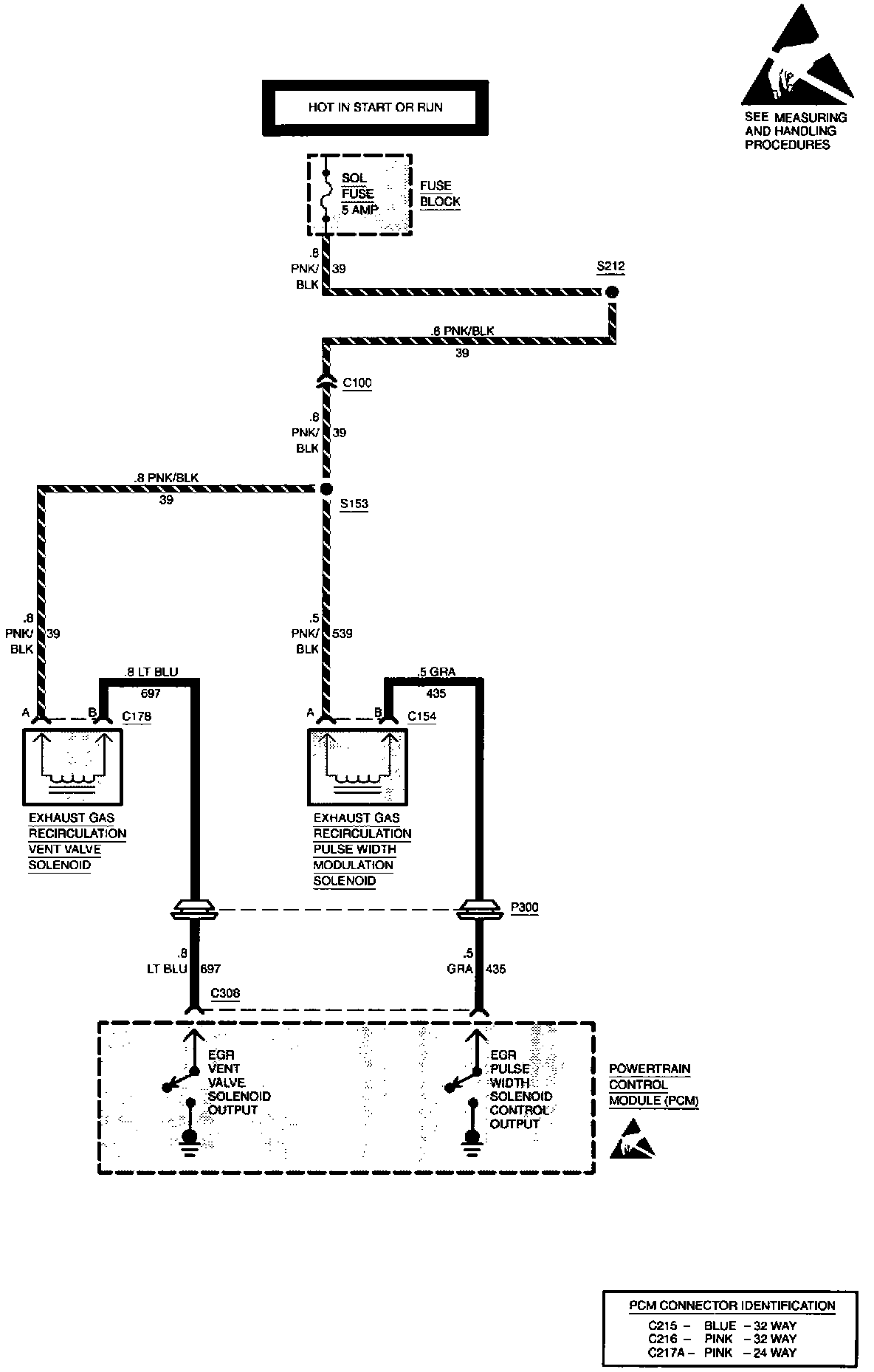

Engine Controls With Manual Or Automatic Transmission (Part 1 Of 3):




Engine Controls:




Engine Controls With Manual Or Automatic Transmission:




Engine Controls:




Engine Controls With Automatic Transmission:




Engine Controls:




Engine Controls:




Engine Controls:
