Cross Body Harn to RH Door Harn
Cross Body Harn to RH Door Harn

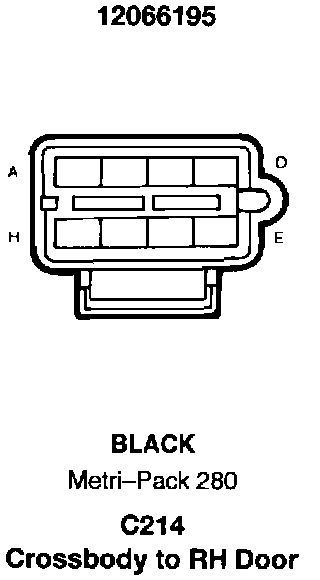

C214, Crossbody To RH Door:
C214, Crossbody To RH Door:

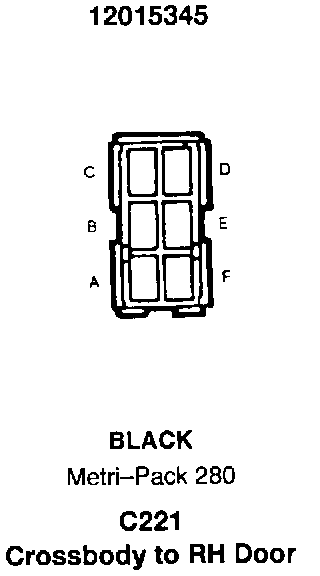

C221, Crossbody To RH Door:
