Interior Lamps - Revised Schematics & Diagnostic Tables

File In Section: 8 - Chassis/Body Electrical

Bulletin No.: 66-81-04

Date: April, 1996

SERVICE MANUAL UPDATE

Subject:
Section 8A-114, Interior Lamps - Revised Schematics and Diagnostic Tables

Models:
1994 Chevrolet and GMC M/L Models

This bulletin has been issued to revise pages 8A-114-3, 8A-114-5, 8A-114-6 and 8A-114-7 of the 1994 M/L Service Manual.

Please replace the current pages listed with the attachments included in this bulletin.

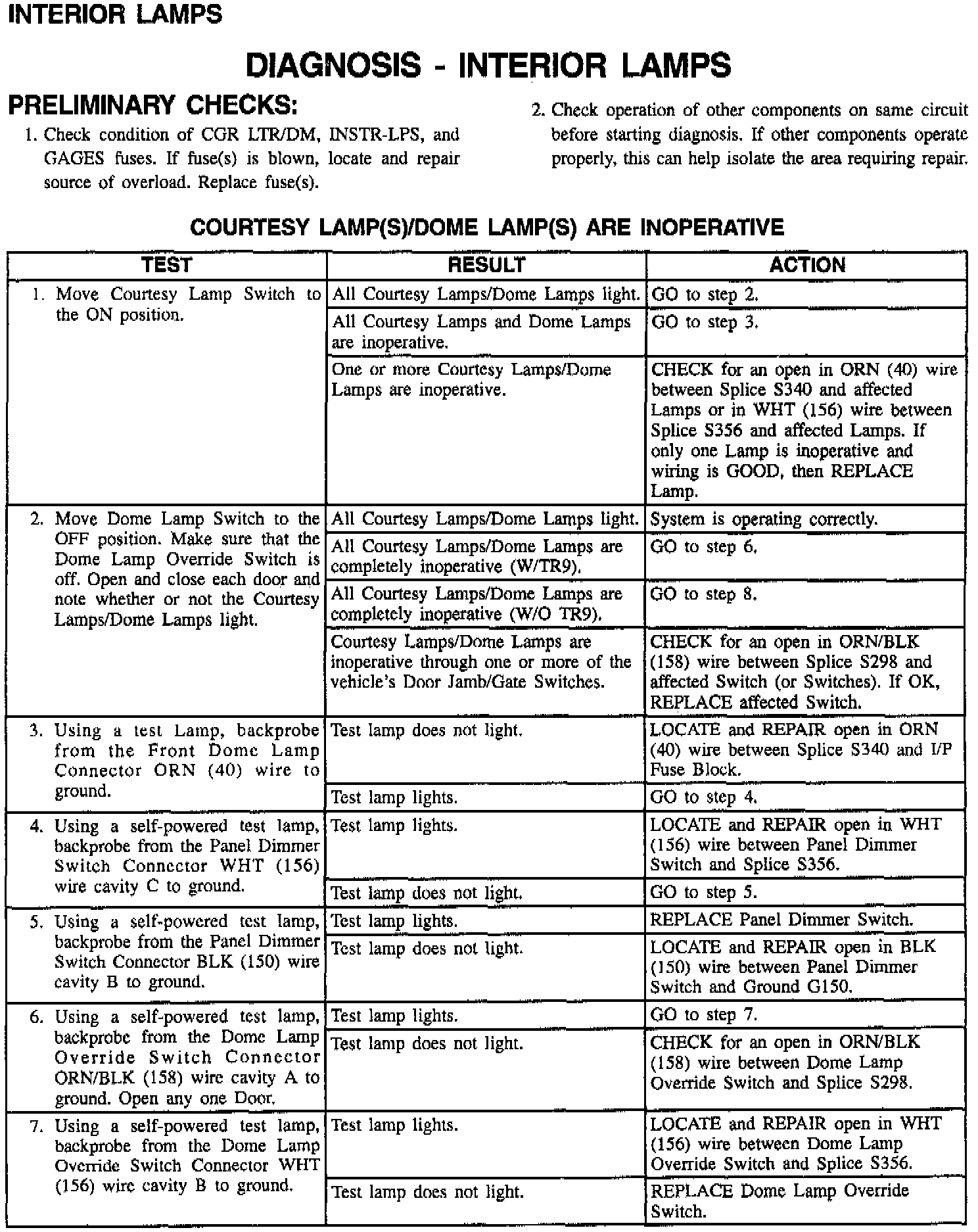

ELECTRICAL DIAGNOSIS 8A-114-4





ELECTRICAL DIAGNOSIS 8A-114-5





ELECTRICAL DIAGNOSIS 8A-114-6





ELECTRICAL DIAGNOSIS 8A-114-7
