Home >> Chevy Truck >> 1994 >> Astro Van L AWD V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G152

G152

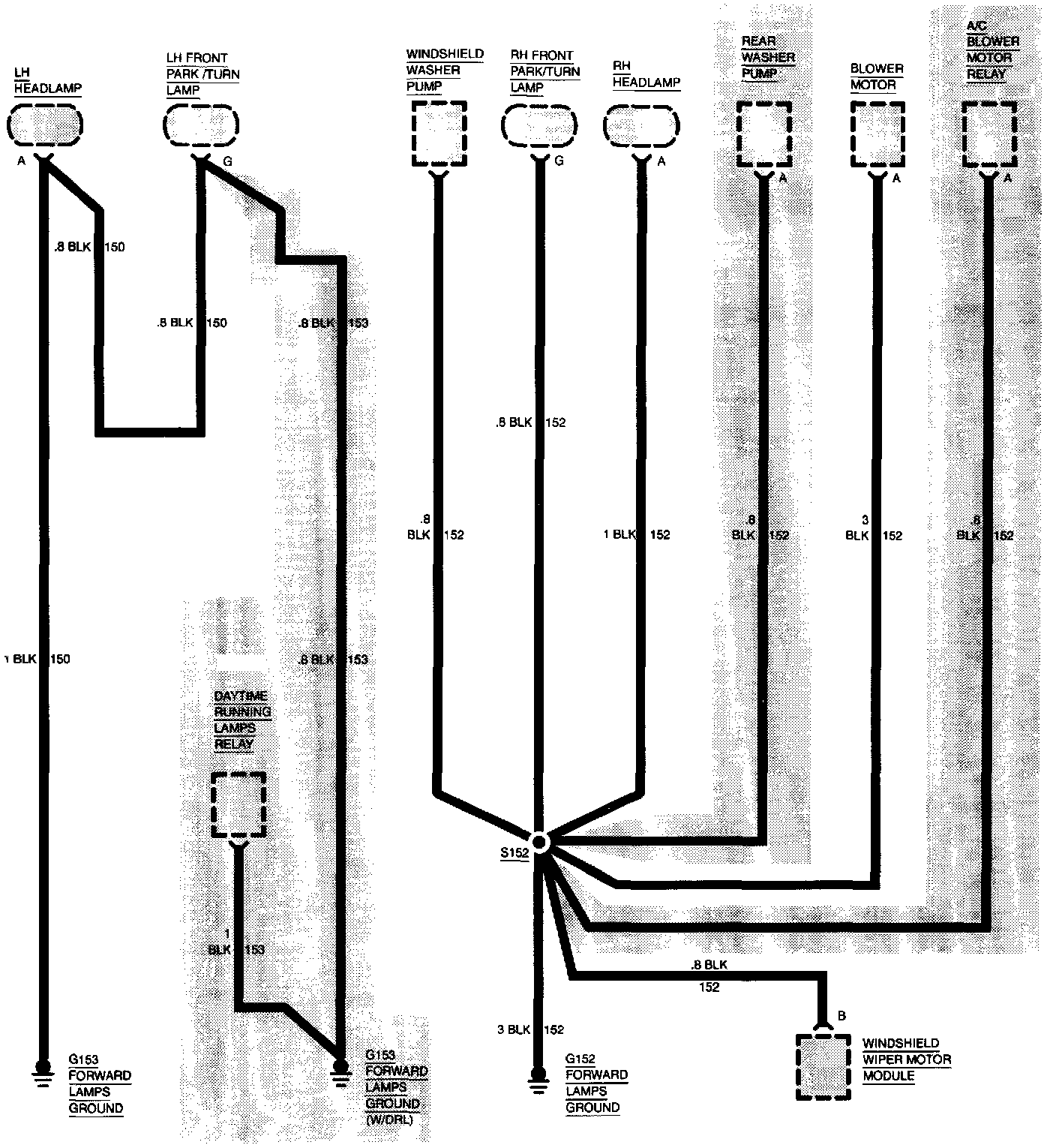

Ground Distribution: G153, G152,:
