Chevy Truck
>>
1994
>>
Astro Van L AWD V6-262 4.3L VIN W CPI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
With Daytime Running Lamps (DRL)
>>
Diagnostic Charts
>>
LO Beam Lamp(S) Do Not Operate
LO Beam Lamp(S) Do Not Operate

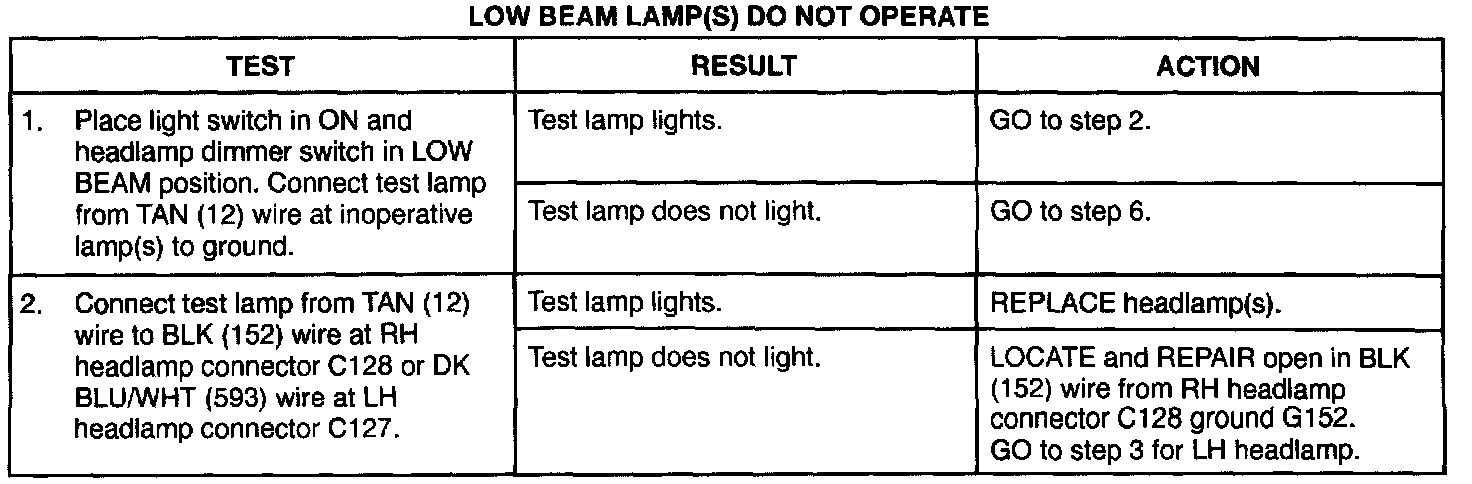

Low Beam Lamp(s) Do Not Operate (Part 1 Of 2):

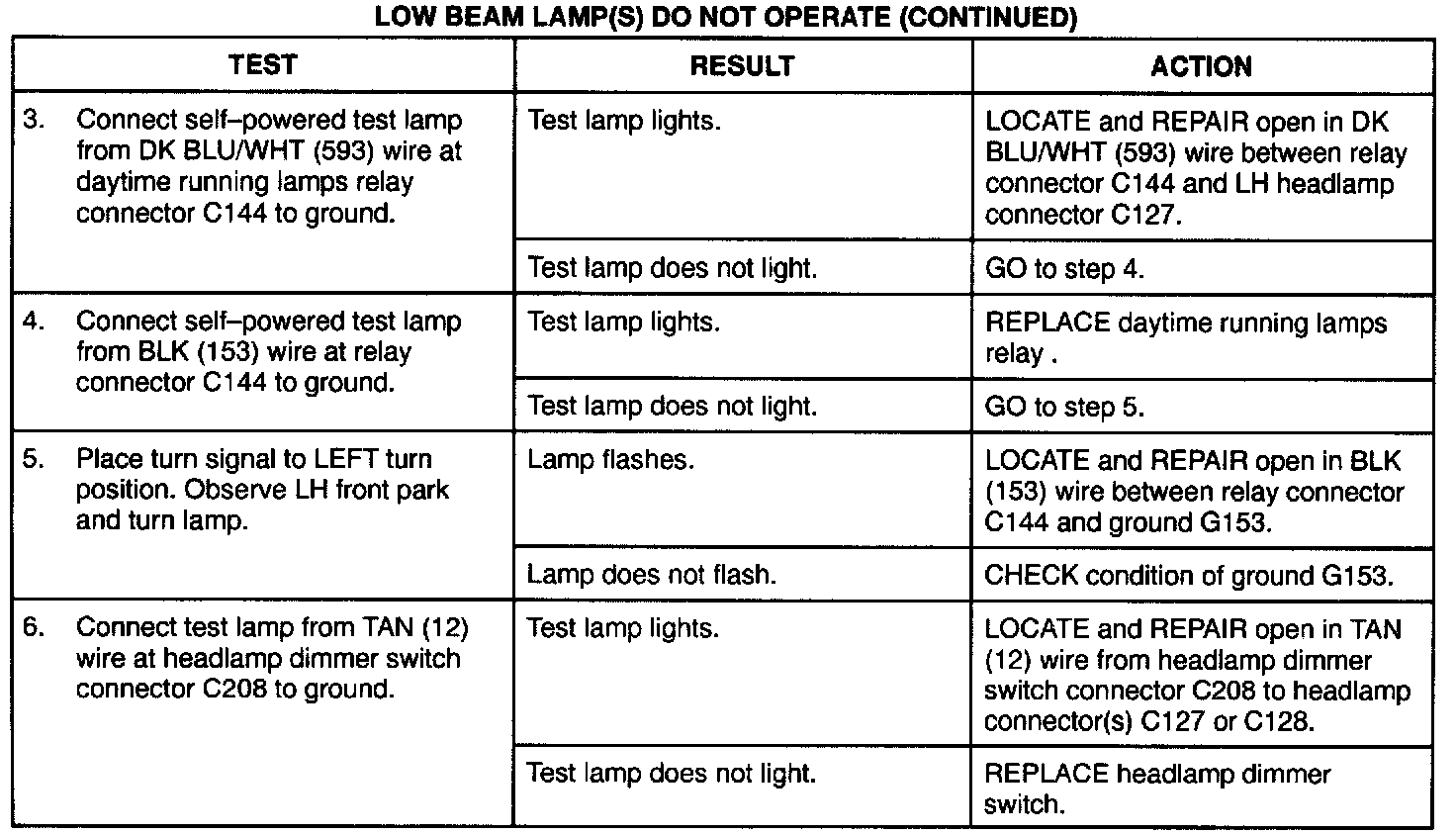

Low Beam Lamp(s) Do Not Operate (Part 2 Of 2):
