With Vehicle Control Module (VCM)

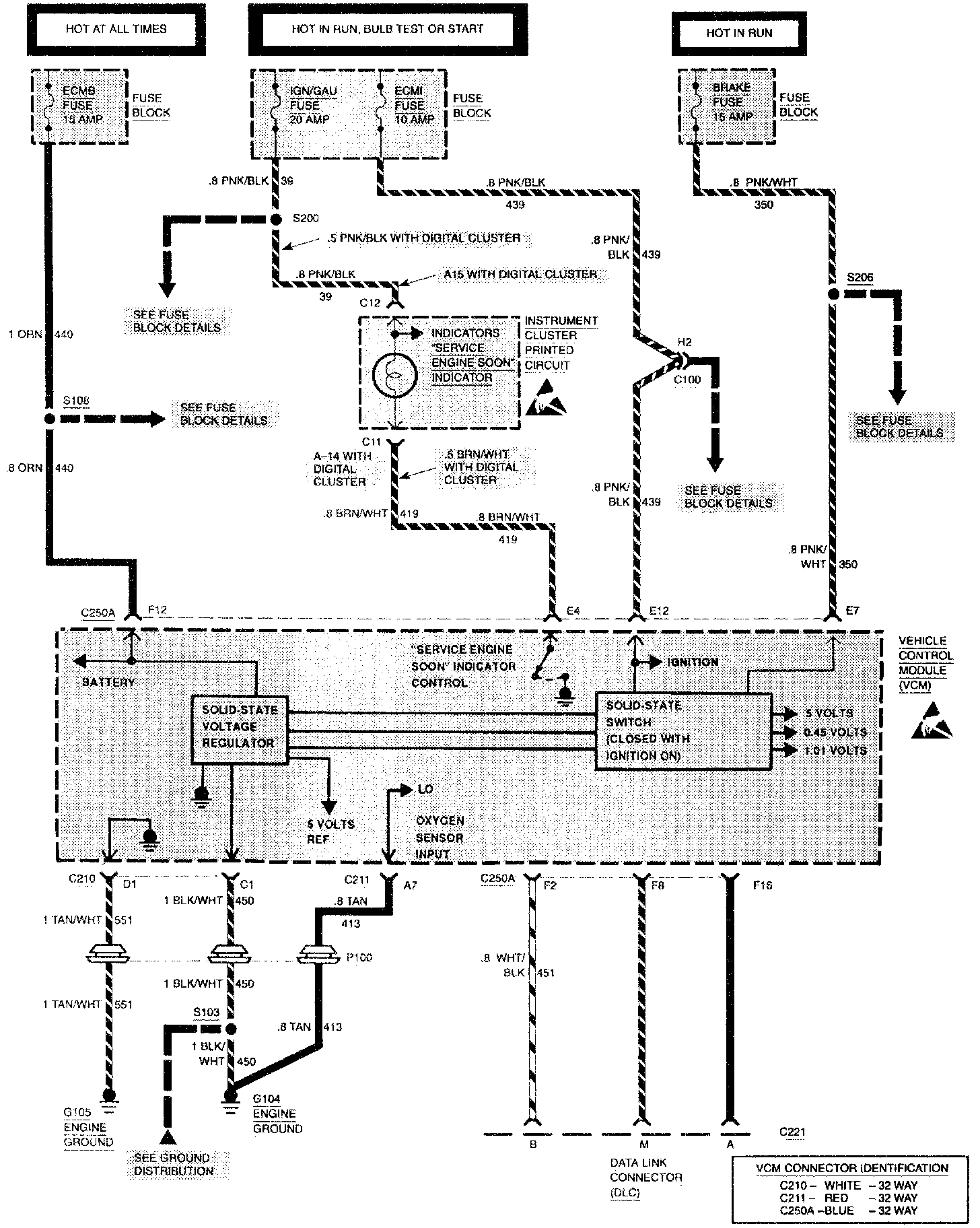

Engine Controls:



Engine Controls:



Engine Controls:



Engine Controls:



Engine Controls:
