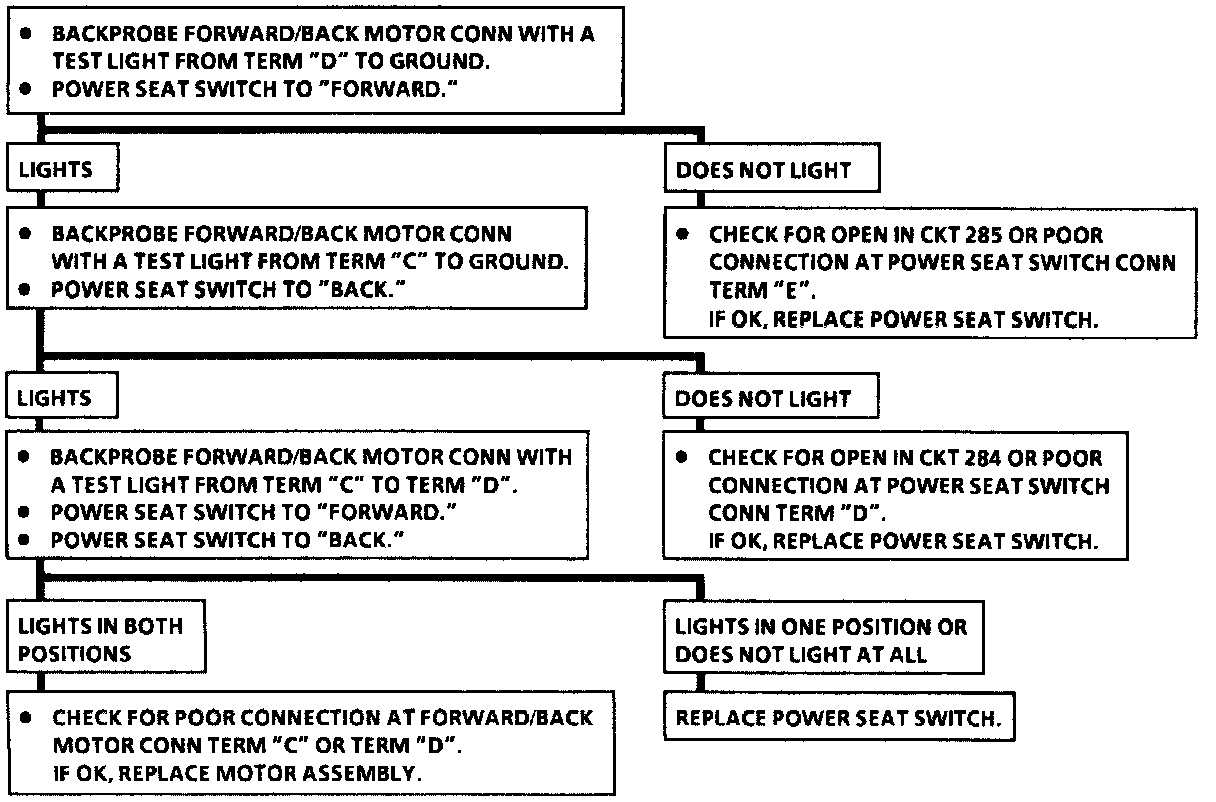

Chart 2

Diagnosis: Entire Seat Will Not Go "Forward" Or "Back," "Up" Or "Down" Functions Operate Normally:
