A081

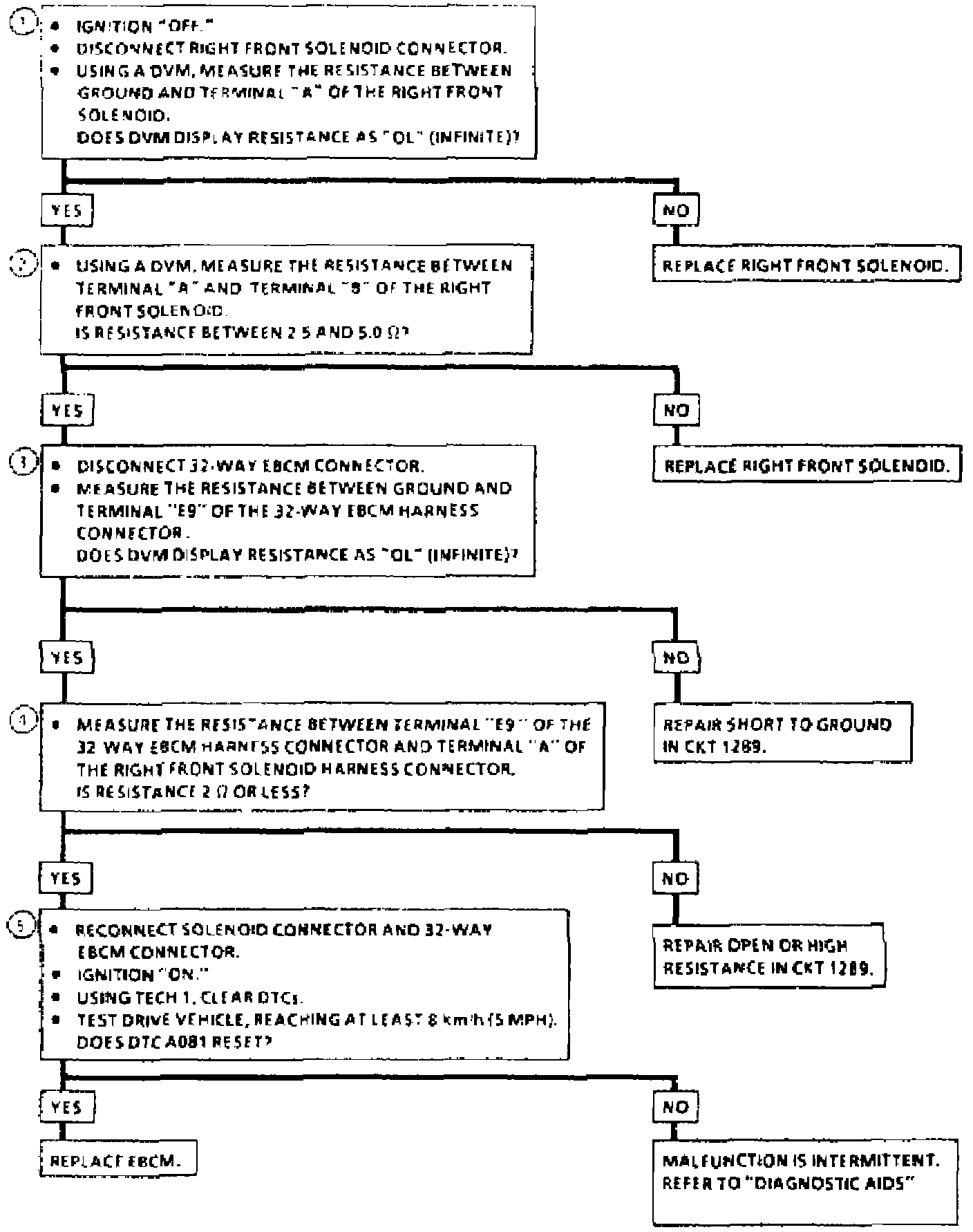

Fig. 109 DTC Code A081 (Right Front Solenoid Circuit Shorted To Ground Or Driver Open):



Fig. 109 DTC Code A081 (Right Front Solenoid Circuit Shorted To Ground Or Driver Open):
