Home >> Chevy Truck >> 1993 >> Lumina APV V6-191 3.1L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> - A Code Charts >> A063

A063

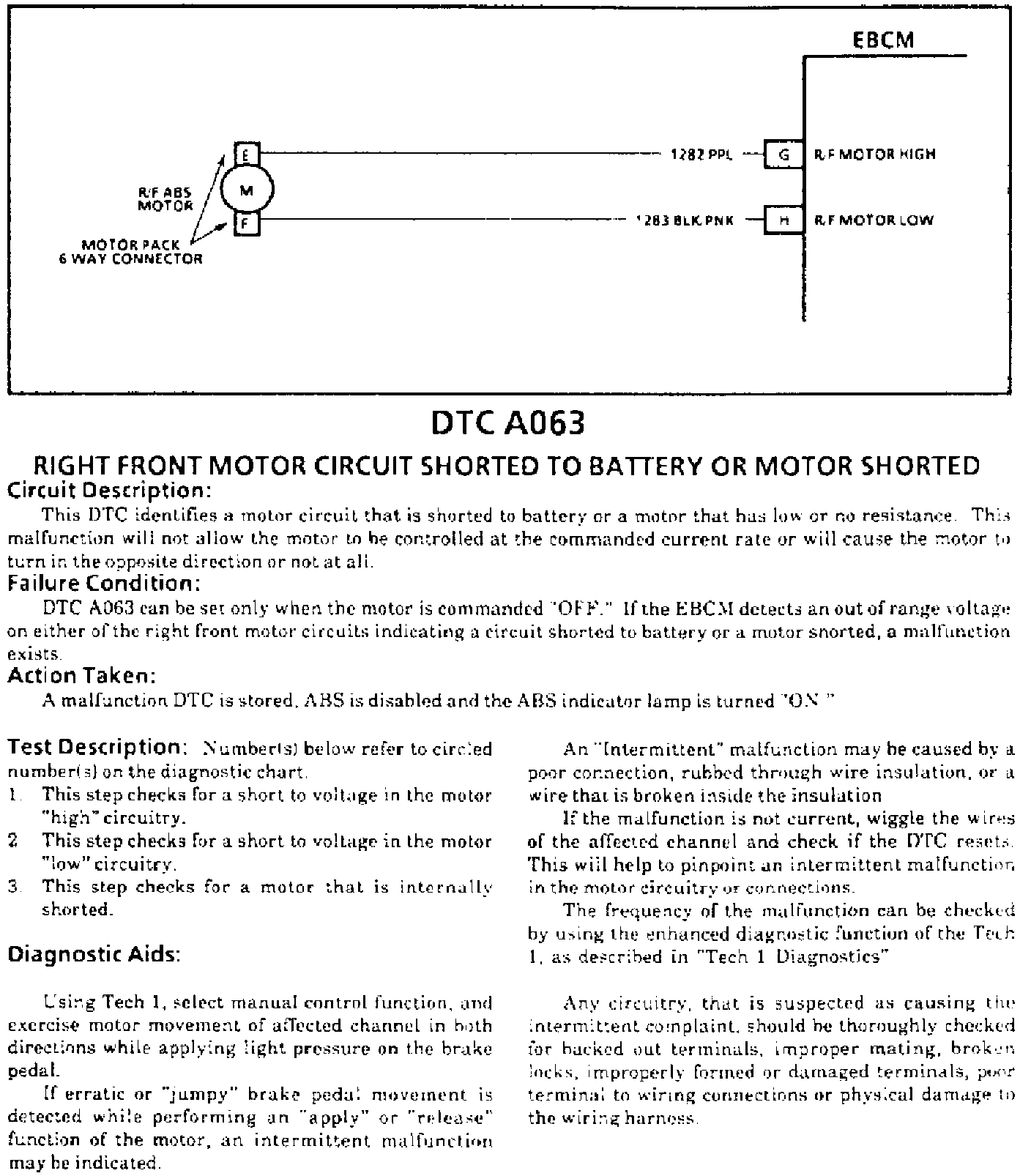

Fig. 95 DTC Code A063 (Right Front Motor Circuit Shorted To Battery Or Motor Shorted):

Fig. 95 DTC Code A063 (Right Front Motor Circuit Shorted To Battery Or Motor Shorted):
