Home >> Chevy Truck >> 1993 >> Astro Van M V6-262 4.3L VIN Z >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Diagrams >> Electrical Diagrams >> Dome Lamps (Less Auxiliary Lighting Package)

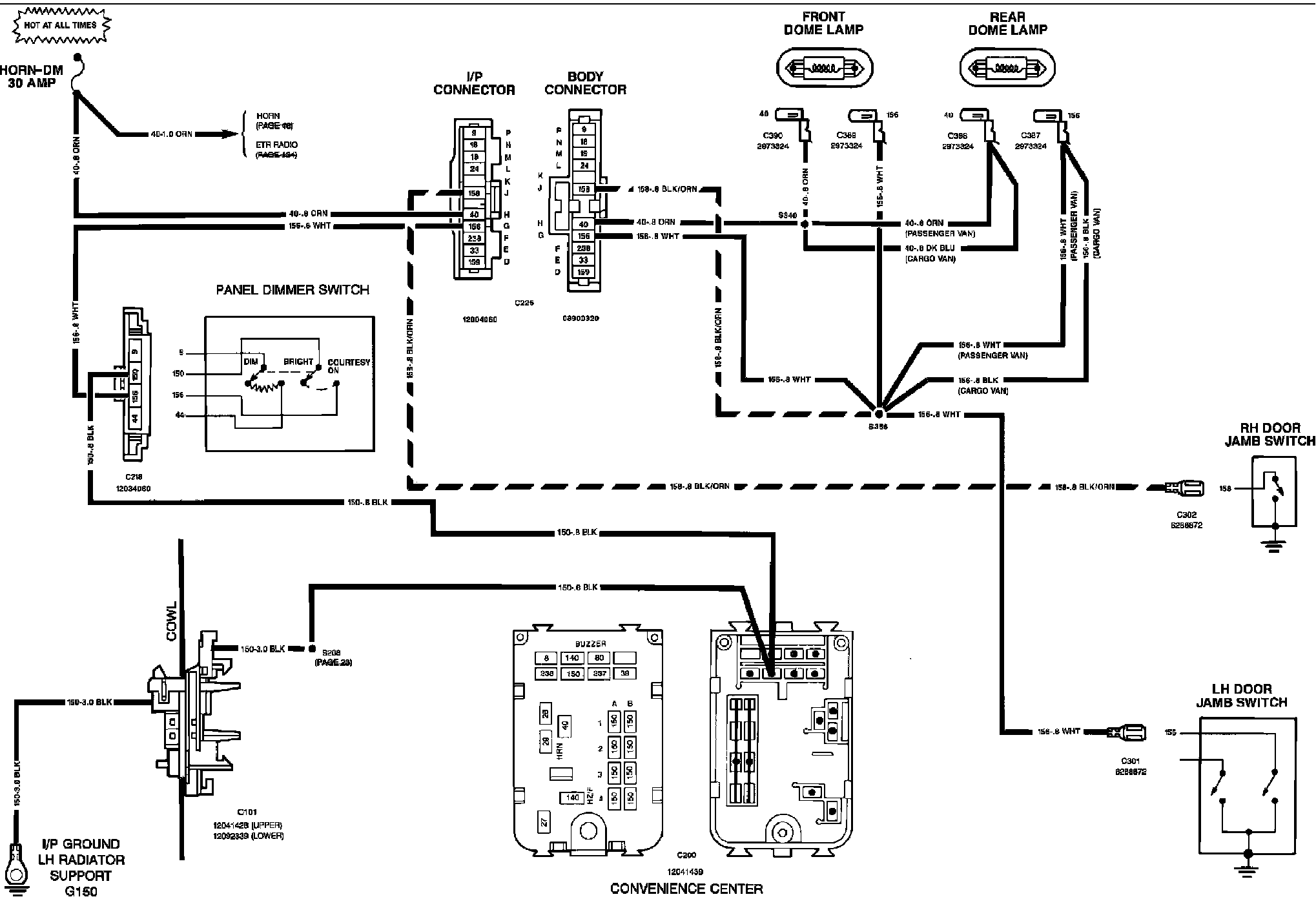

Dome Lamps (Less Auxiliary Lighting Package)

Dome Lamps Without Auxiliary Lighting Package:
