Connecting Rod: Service and Repair

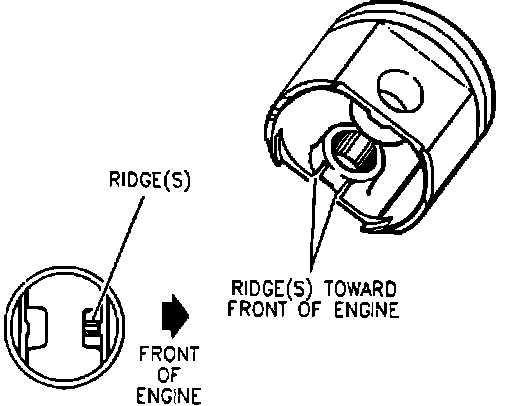

Fig. 14 Piston Installation Direction:

Pistons should be installed as shown in Fig. 14.

After piston and rod installation, measure connecting rod side clearance. Side clearance should be .003-.015 inch.
