Home
>>
Chevy Truck
>>
1992
>>
Lumina APV V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Transmission Control Valve Body and Solenoids
>>

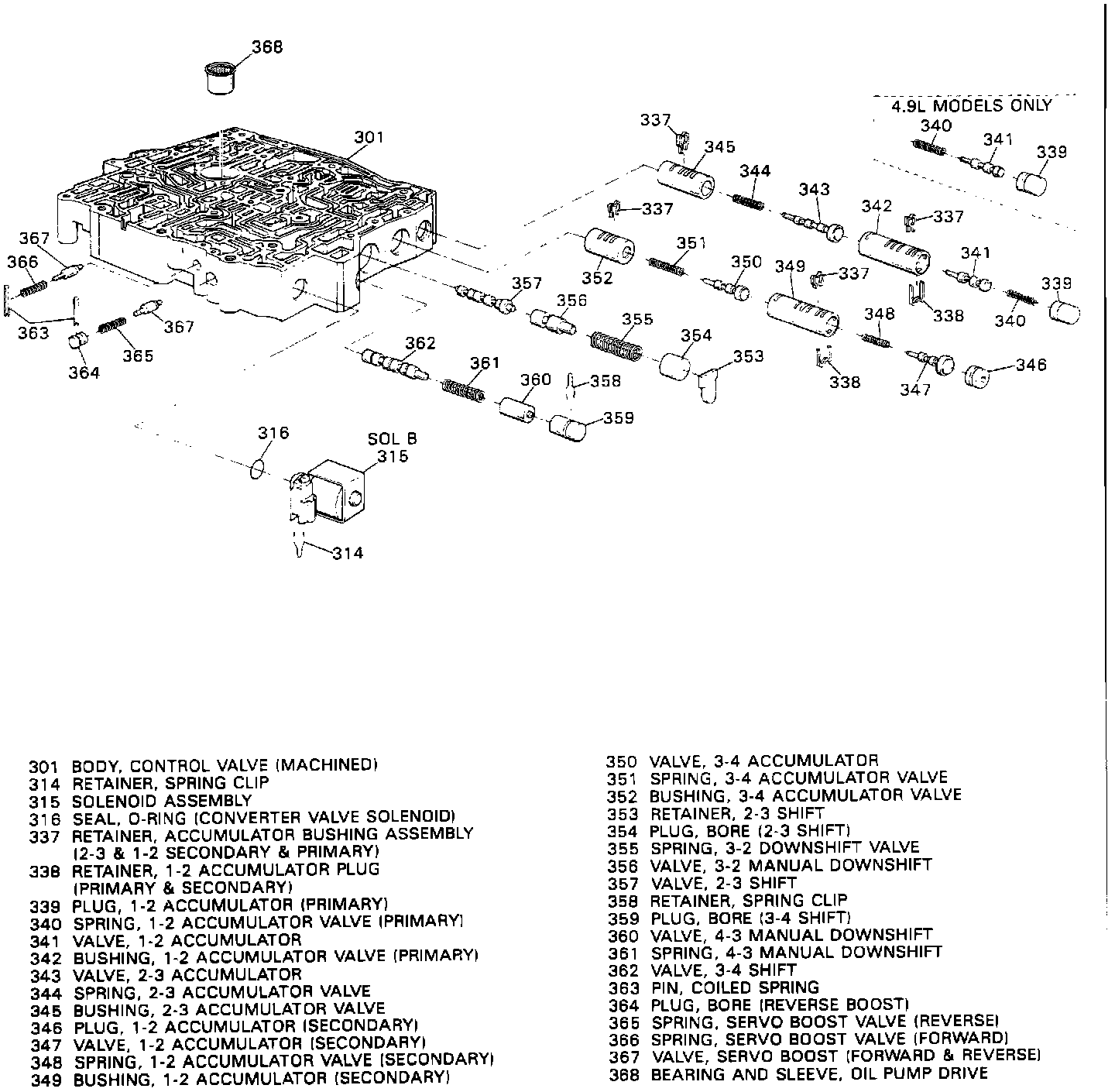

View "B" (Includes "B" Solenoid)
View "B" (Includes "B" Solenoid)
Control Valve Assembly - View B.:
