A081

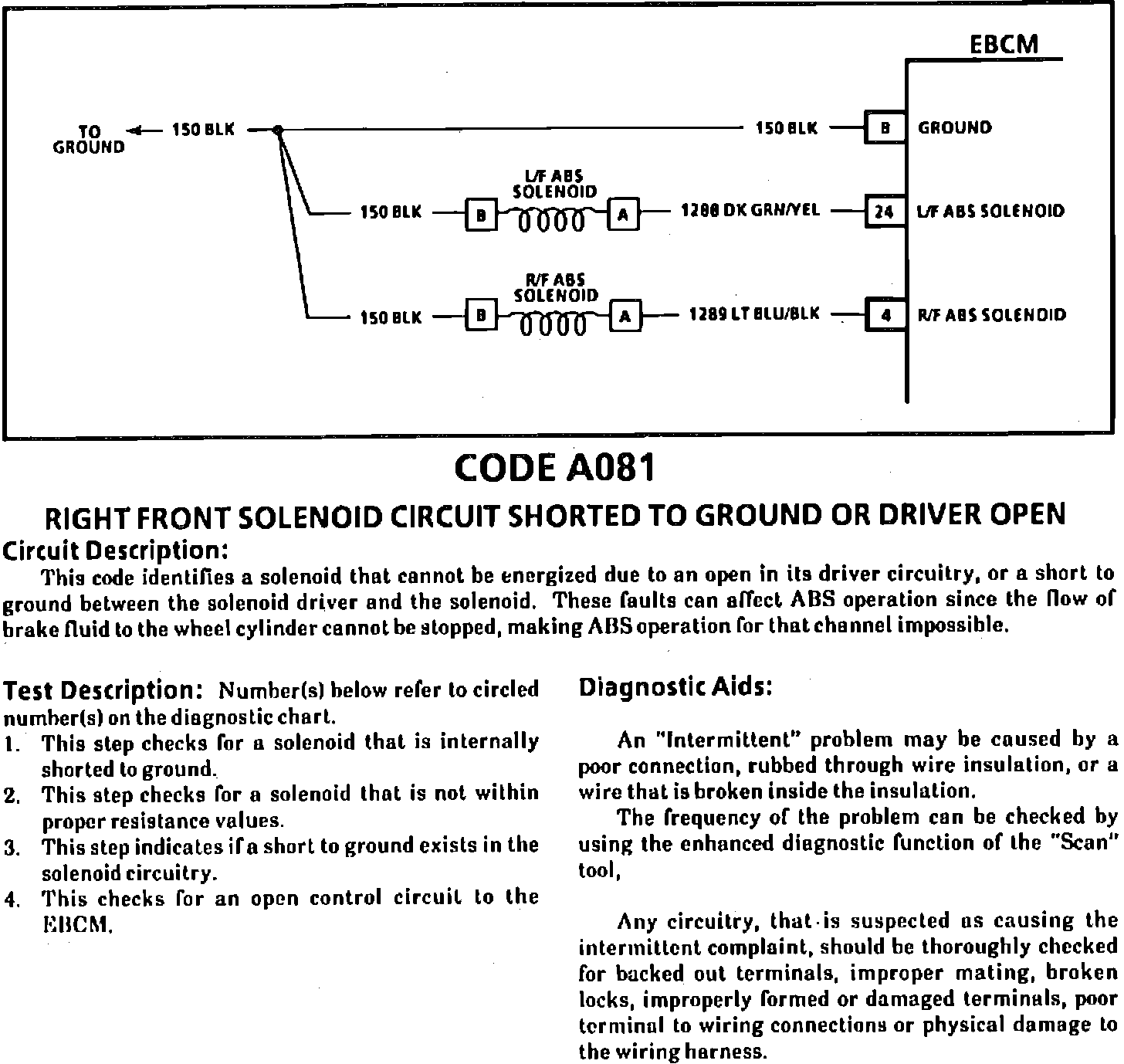

Fig. 56 Code A081 (Right Front Solenoid Circuit Shorted To Ground Or Driver Open.,Part 1 Of 2):

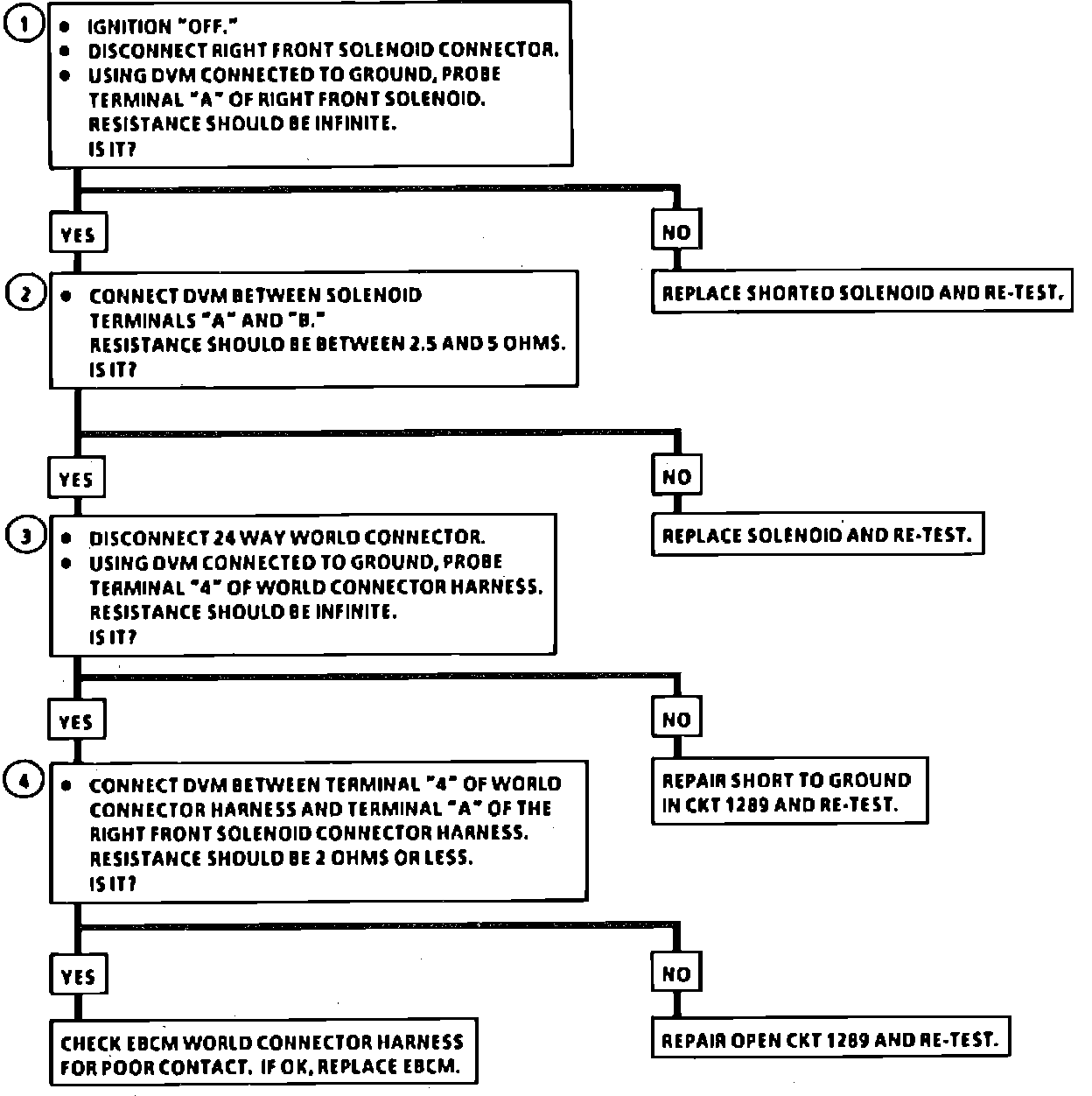

Fig. 56 Code A081 (Right Front Solenoid Circuit Shorted To Ground Or Driver Open. Part 2 Of 2):
