A078

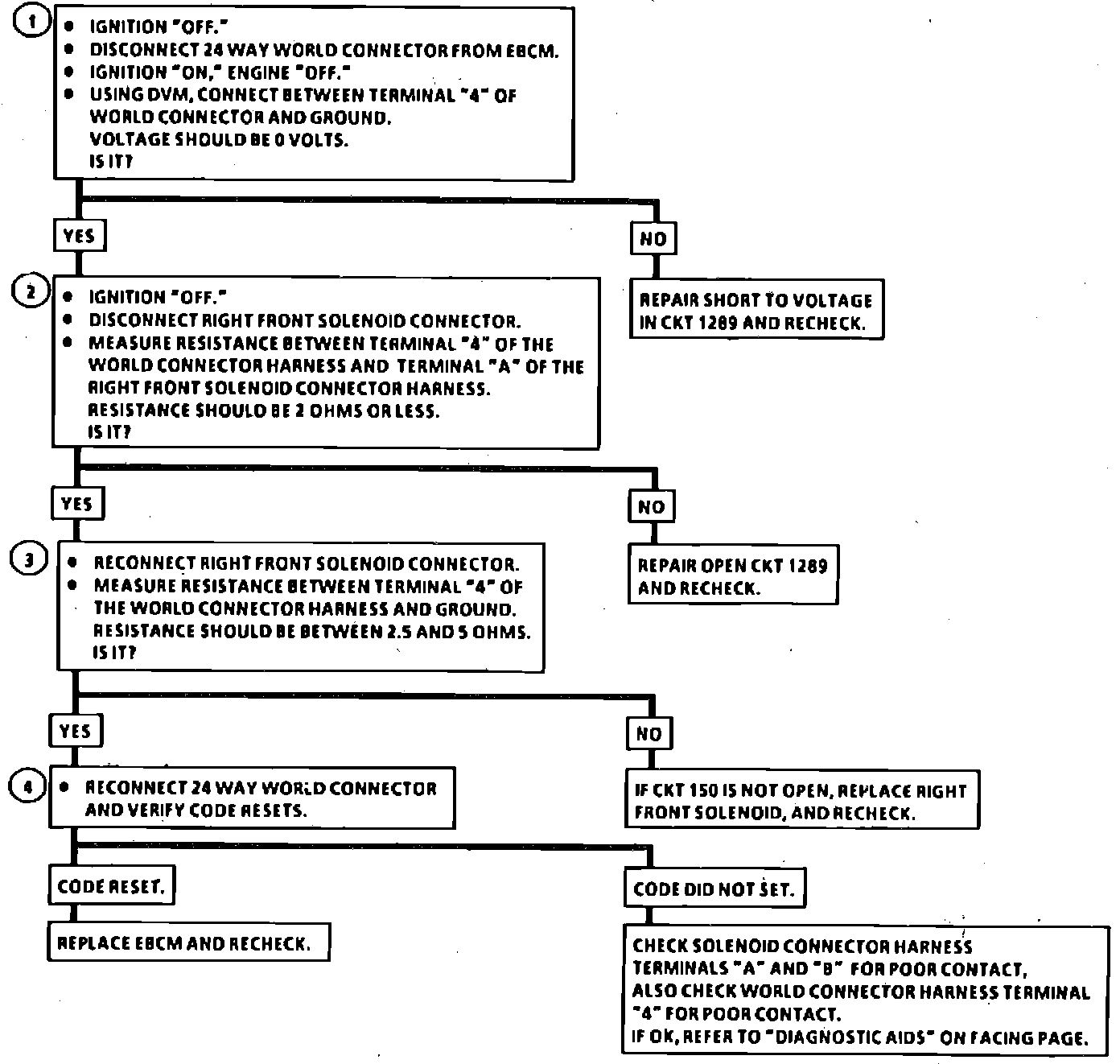

Fig. 55 Code A078 (Right Front Solenoid Circuit Shorted To Battery Or Open, Part 1 Of 2):



Fig. 55 Code A078 (Right Front Solenoid Circuit Shorted To Battery Or Open, Part 2 Of 2):
