A032

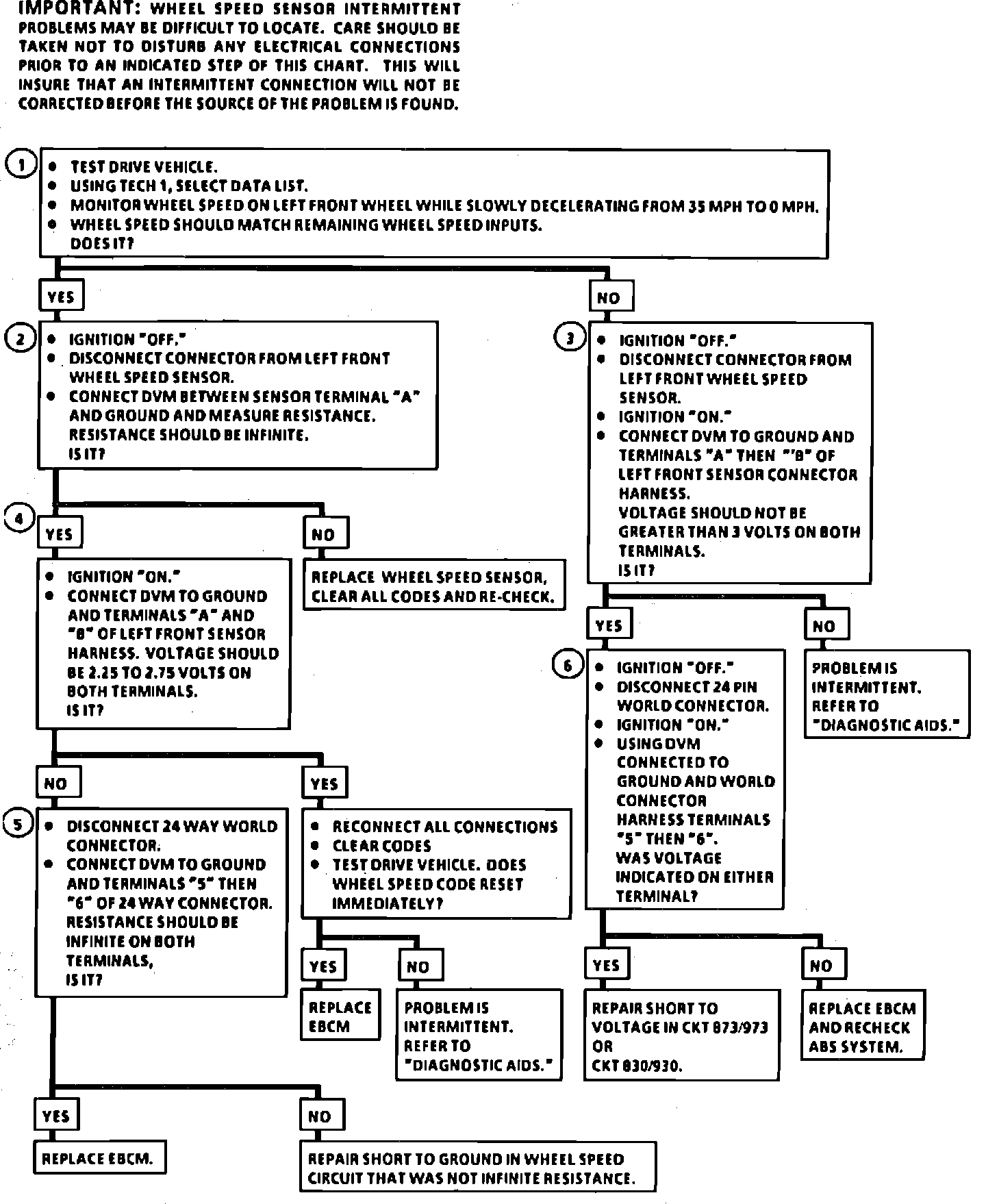

Fig. 25 Code A032 (Left Front Wheel Speed Sensor Shorted To Battery Ground, Part 1 Of 2):



Fig. 25 Code A032 (Left Front Wheel Speed Sensor Shorted To Battery Ground Part 2 Of 2):
