A026

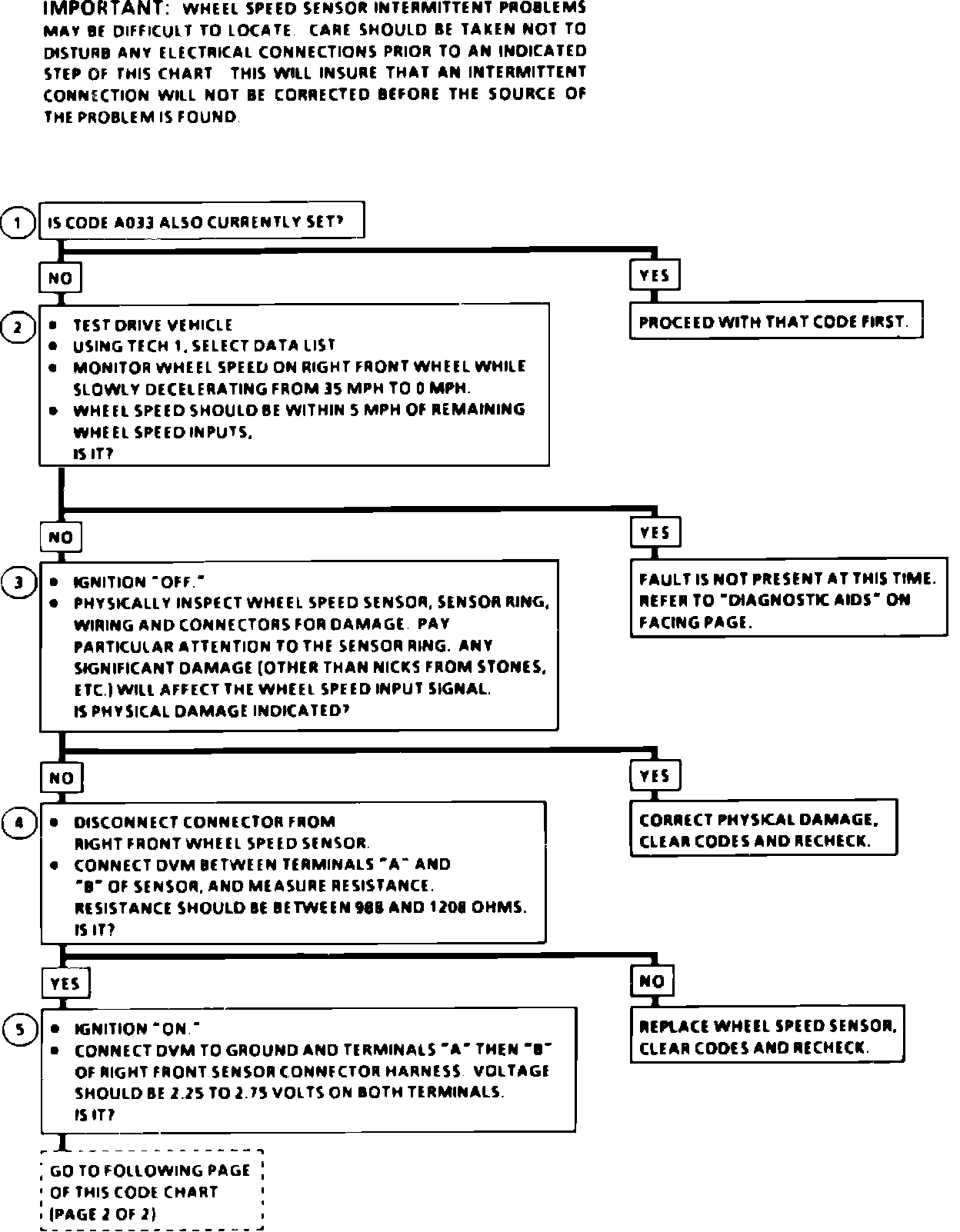

Fig. 21 Code A026 (Right Front Excessive Wheel Speed Variation, Part 1 Of 4):

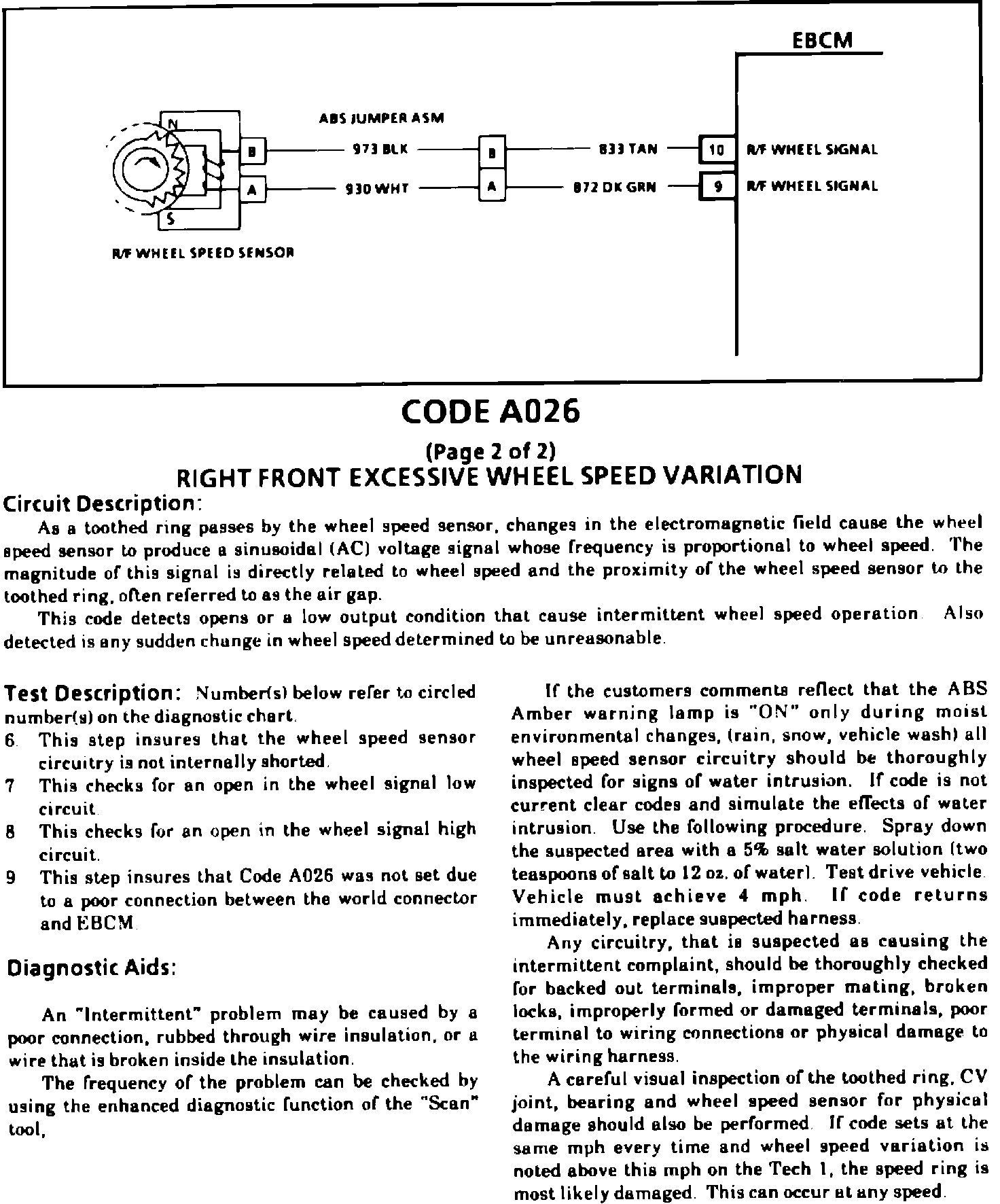

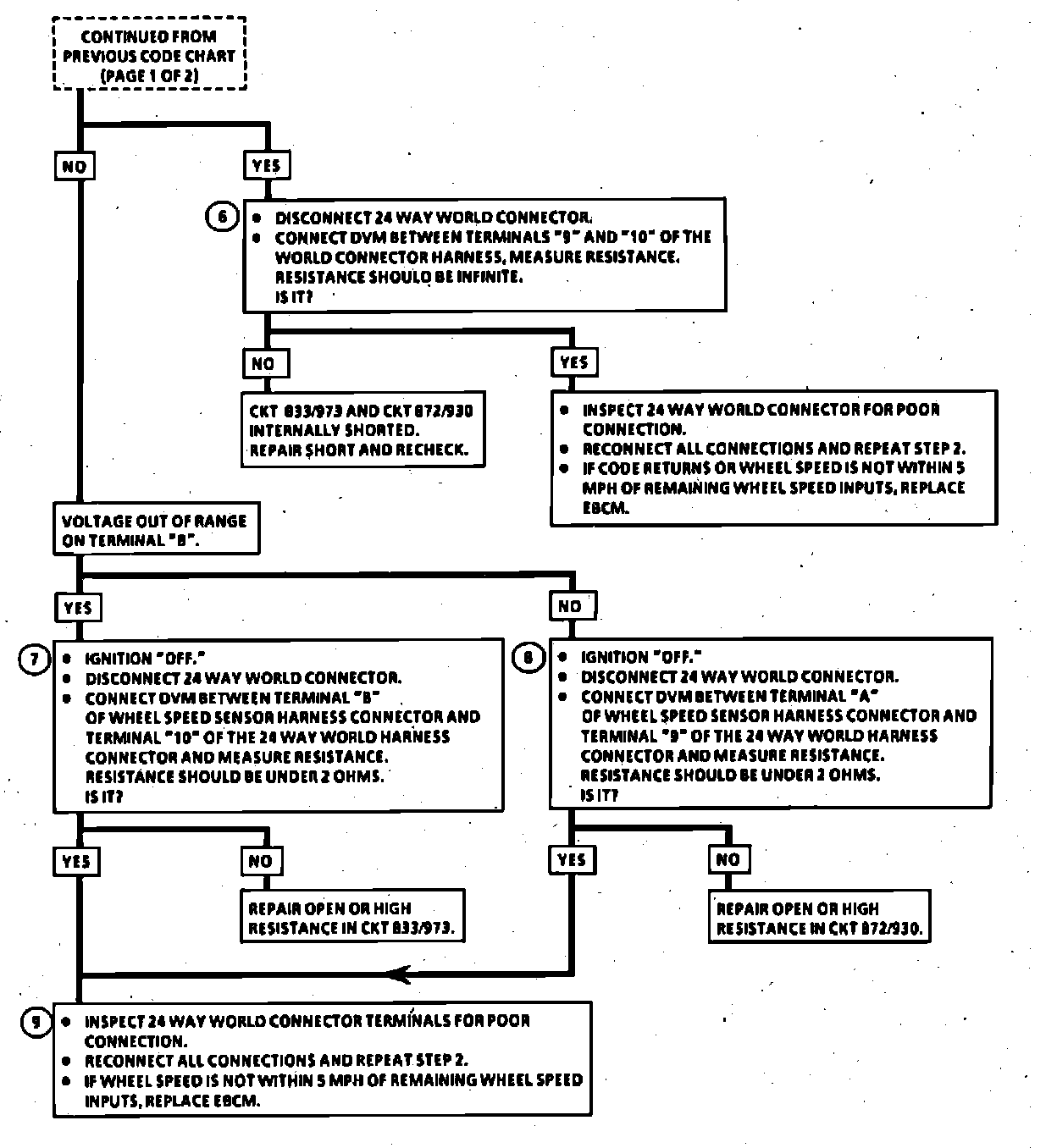

Fig. 21 Code A026 (Right Front Excessive Wheel Speed Variation, Part 2 Of 4):

Fig. 21 Code A026 (Right Front Excessive Wheel Speed Variation = 0, Part 3 Of 4):

Fig. 21 Code A026 (Right Front Excessive Wheel Speed Variation = 0, Part 4 Of 4):
