A025

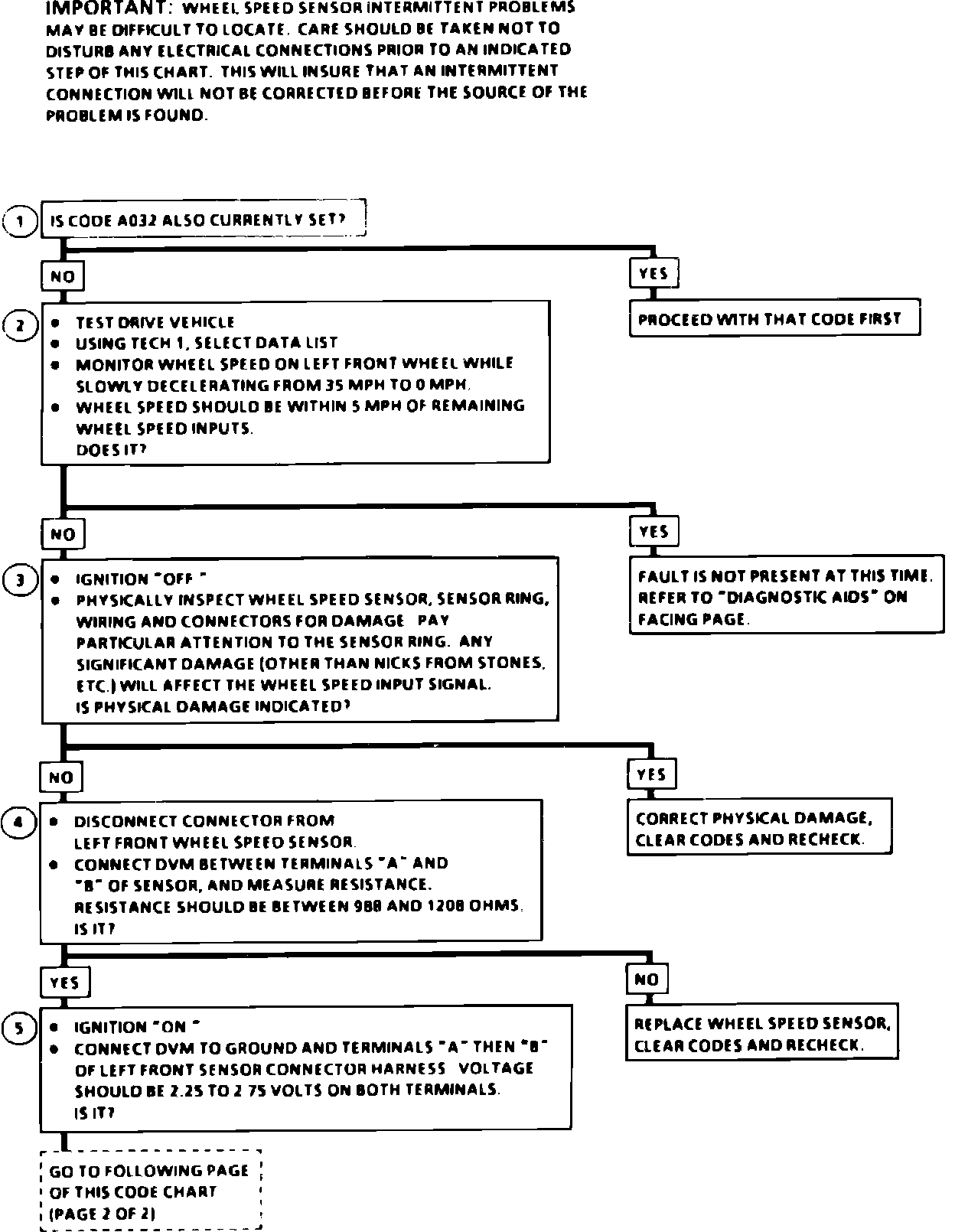

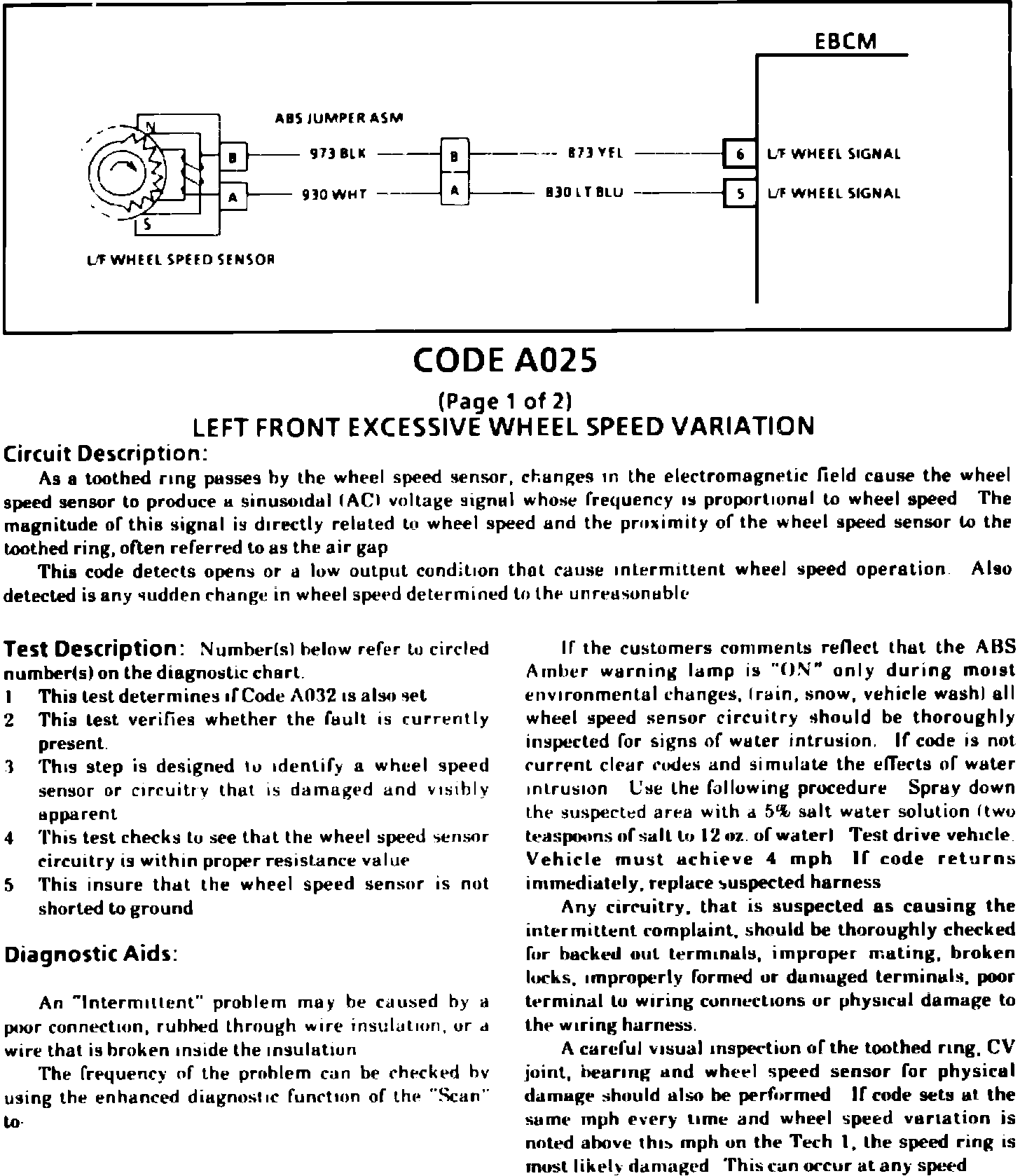

Fig. 20 Code A025 (Left Front Excessive Wheel Speed Variation, Part 1 Of 4):

Fig. 20 Code A025 (Left Front Excessive Wheel Speed Variation, Part 2 Of 4):

Fig. 20 Code A025 (Left Front Excessive Wheel Speed Sensor = 0, Part 3 Of 4):

Fig. 20 Code A025 (Left Front Excessive Wheel Speed Sensor = 0, Part 4 Of 4):
