A022

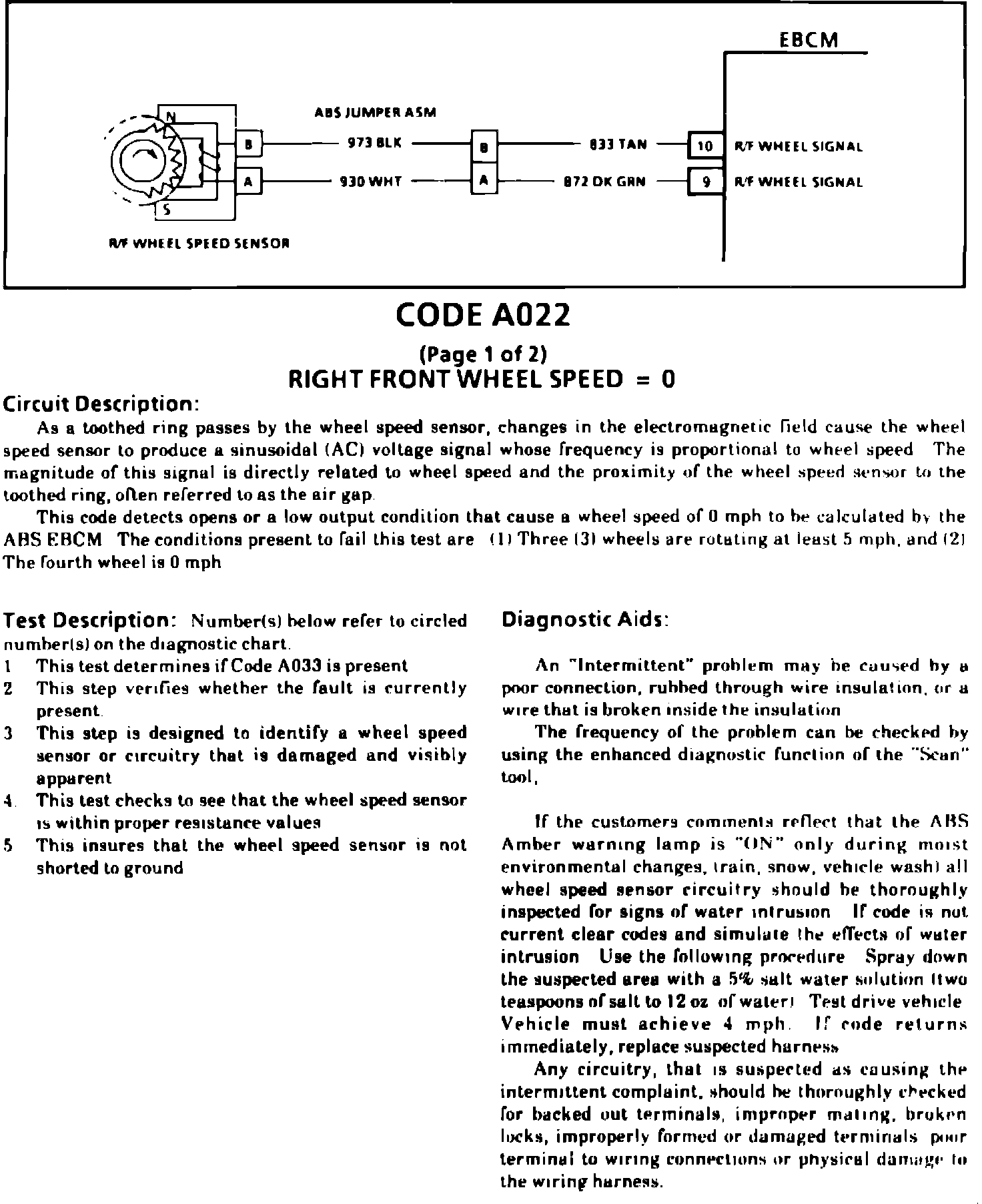

Fig. 17 Code A022 (Right Front Wheel Speed Sensor=0, Part 1 Of 4):

Fig. 17 Code A022 (Right Front Wheel Speed Sensor=0, Part 2 Of 4):

Fig. 17 Code A022 (Right Front Wheel Speed Sensor = 0, Part 3 Of 4):

Fig. 17 Code A022 (Right Front Wheel Speed Sensor = 0, Part 4 Of 4):
