Home >> Chevy Truck >> 1992 >> G 20 Van V8-305 5.0L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Diagrams >> Electrical Diagrams >> With Daytime Running Lamps (DRL) >> Quad Halogen

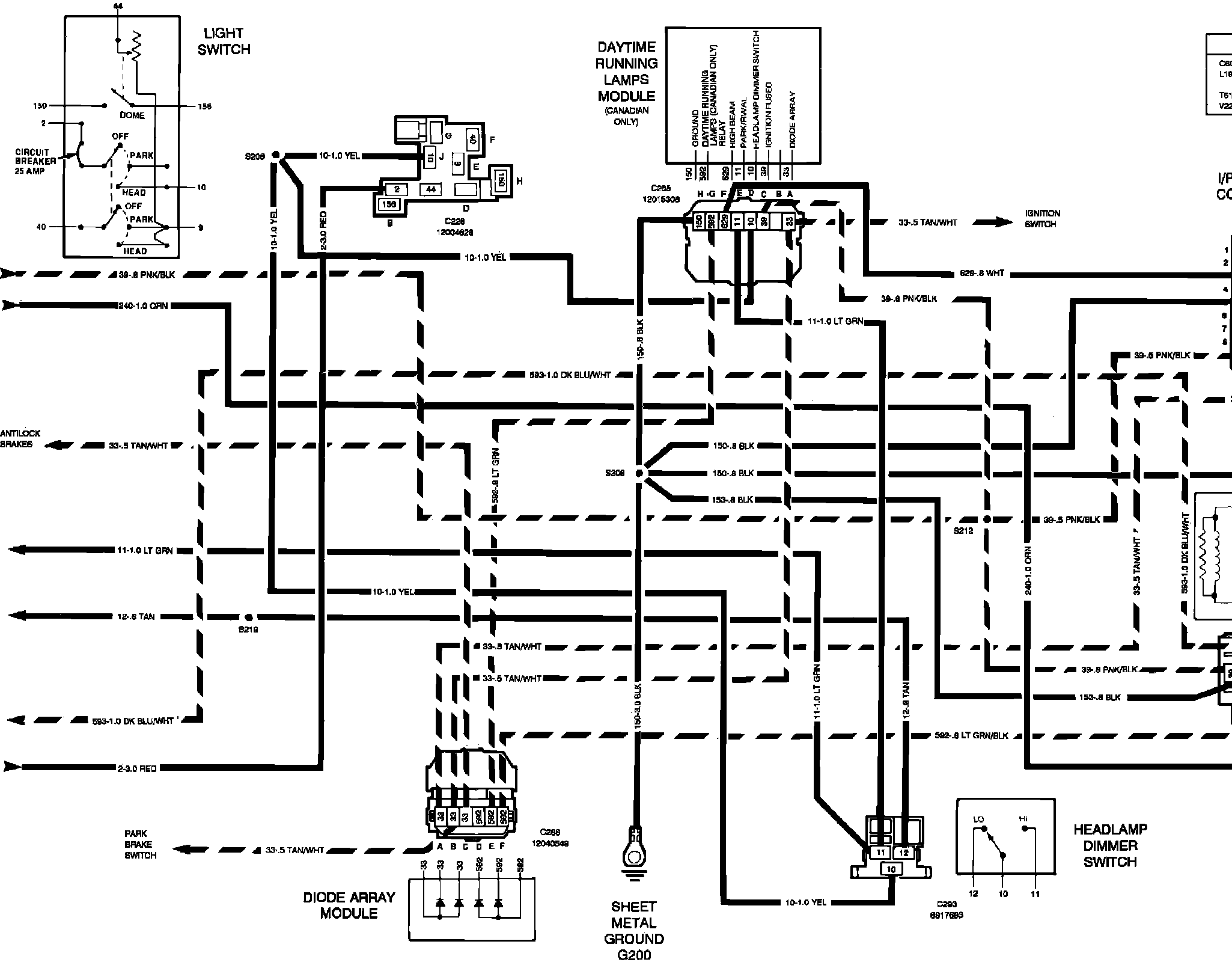

Quad Halogen

iJ-DHeadlamps W/Daytime Running Lamps:



��-DHeadlamps W/Daytime Running Lamps:
