Home
>>
Chevy Truck
>>
1992
>>
Blazer Full Size V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Control & Delivery
>>
With HD Auto Trans.
With HD Auto Trans.

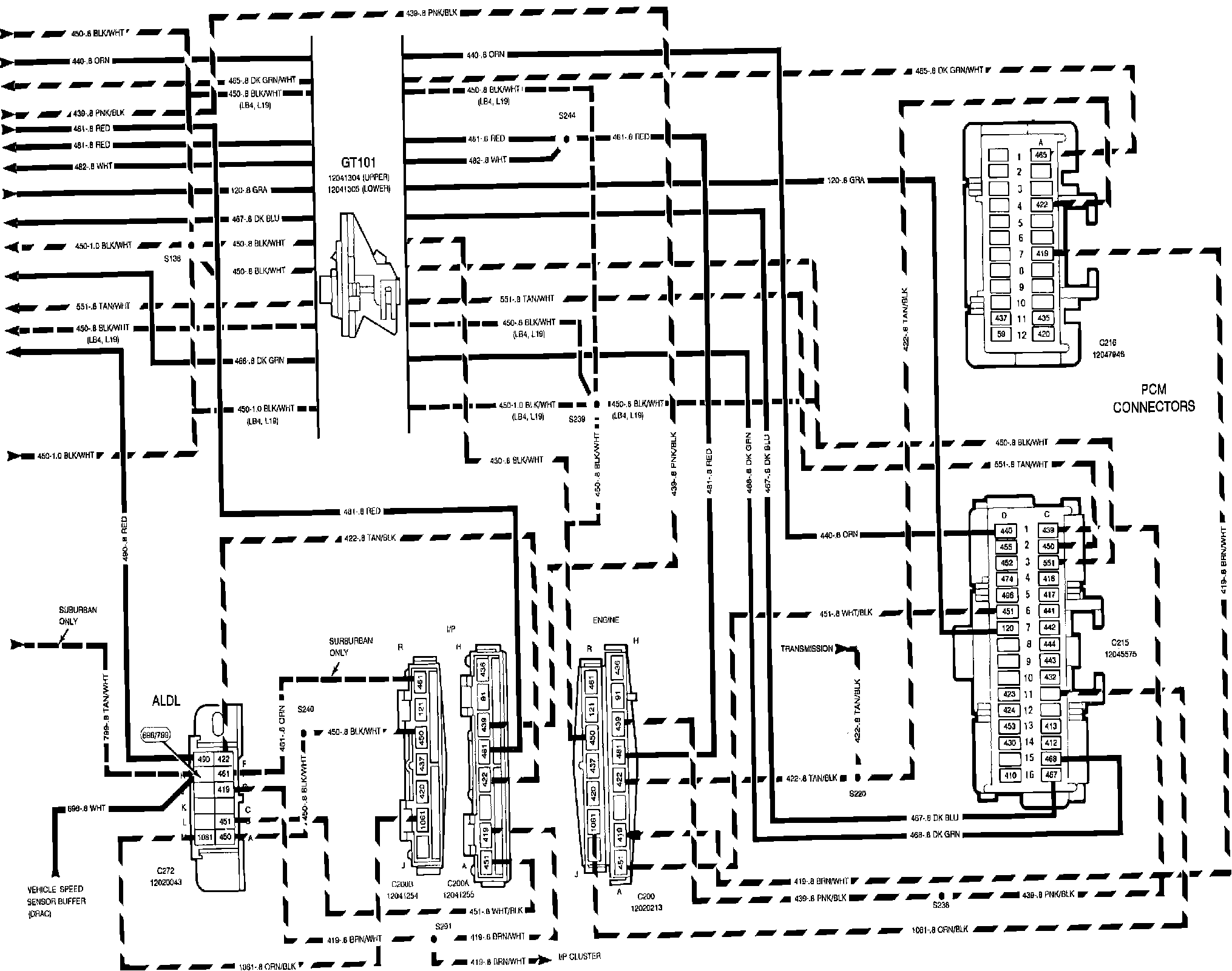

92 C/K Fuel W/HD Auto.:
92 C/K Fuel W/HD Auto.:
