Home >> Chevy Truck >> 1992 >> Astro Van M V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Diagrams >> Electrical Diagrams >> With 4-Wheel Drive and A/C >> Part 1 of 2

Part 1 of 2

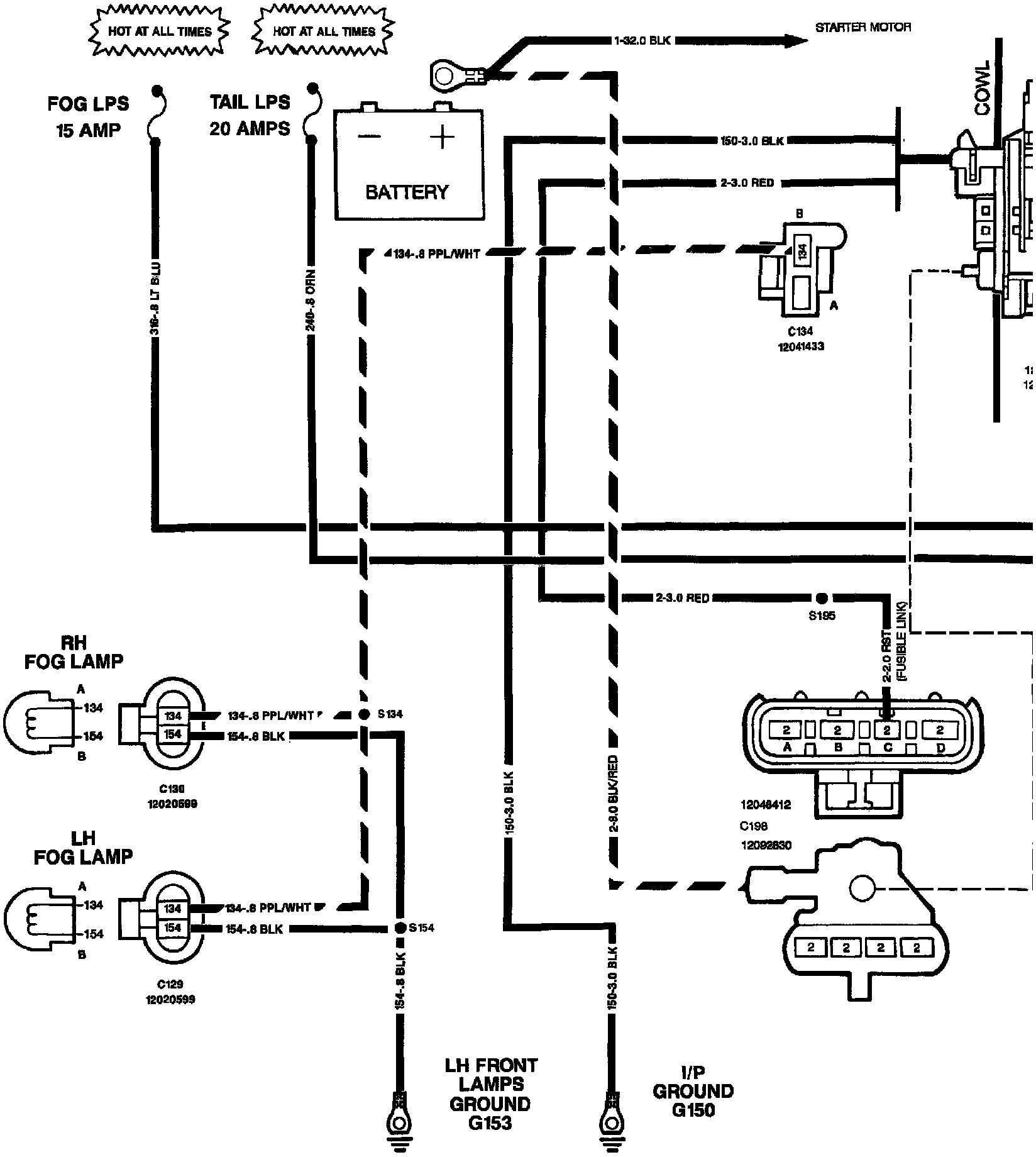

l��CFog Lamps W/Four-Wheel Antilock Brakes And A/C (Except Canadian Models):
