Home >> Chevy Truck >> 1992 >> Astro Van M V6-262 4.3L VIN W CPI >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> Auxiliary A/C Control Switch

Auxiliary A/C Control Switch

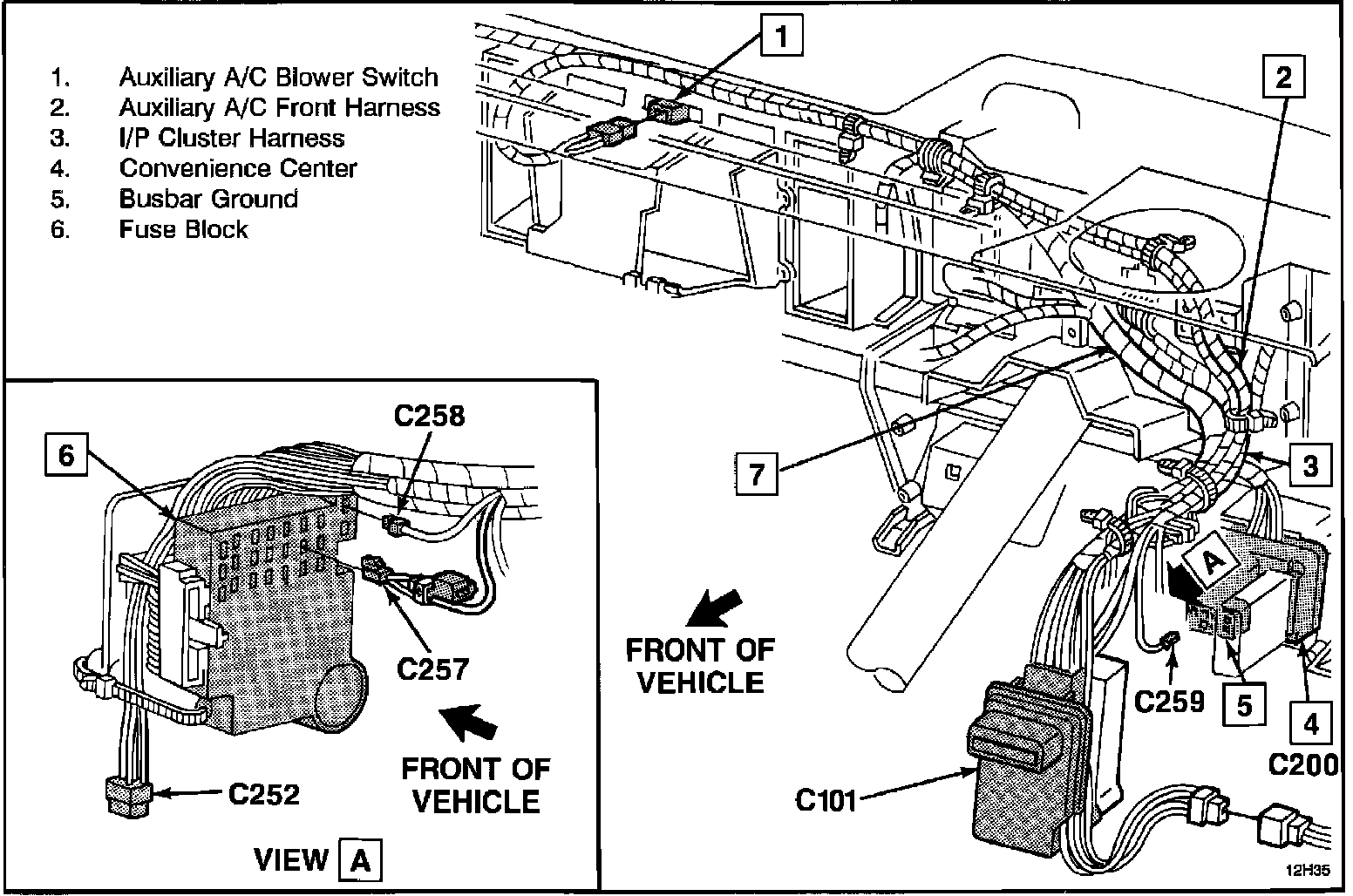

Auxiliary A/C Controls And Wiring:
