Chevy Truck
>>
1991
>>
S10/T10 Blazer 4WD V6-262 4.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

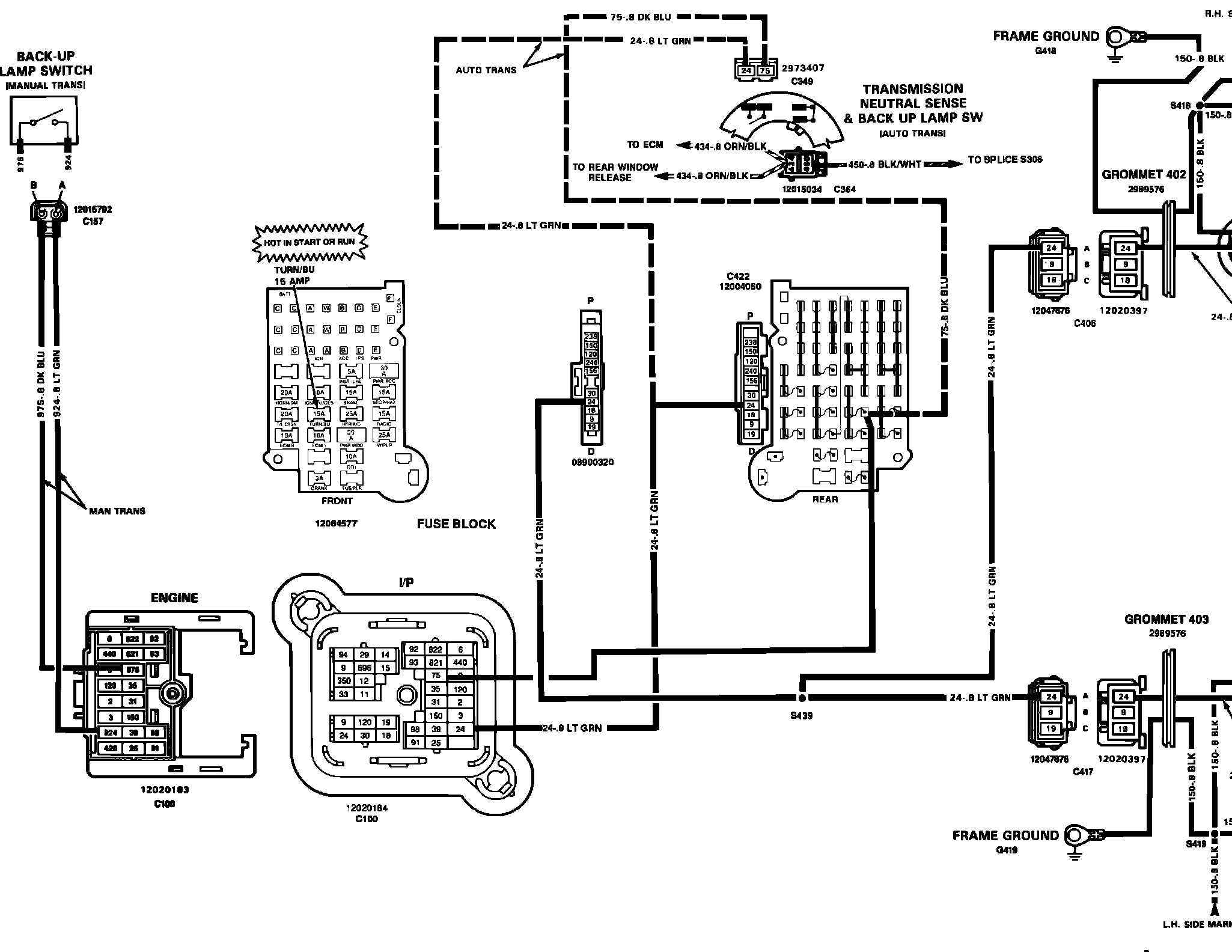

�C�BBack-Up Lamps (4-Door):
*]�BLamps: Back-Up (2-Door Utility):
