Chevy Truck
>>
1991
>>
K 2500 Truck 4WD V8-305 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Idle Air Control (IAC)
>>
Less Auto Trans, HD, 4-SPD & Overdrive
Less Auto Trans, HD, 4-SPD & Overdrive

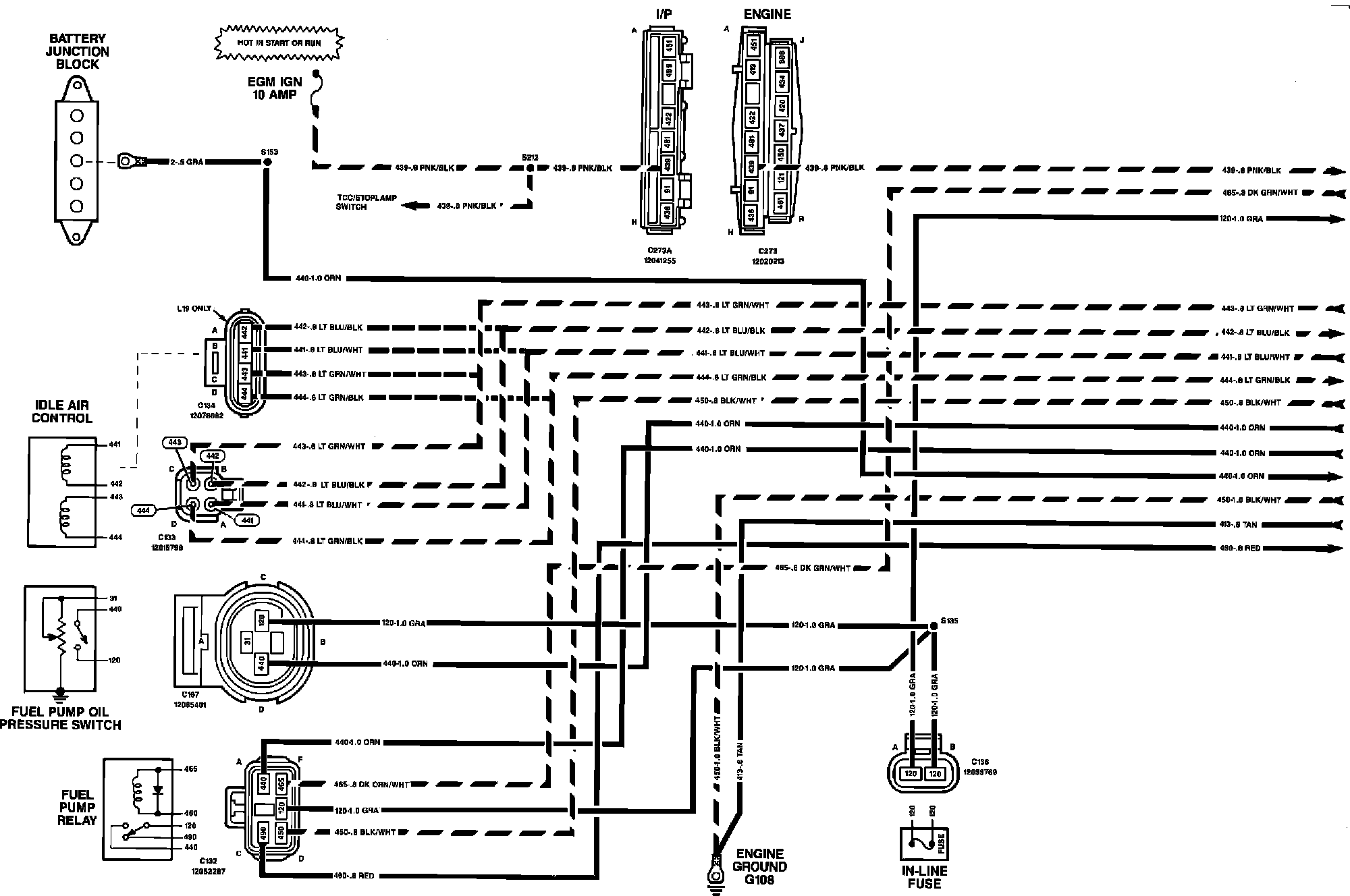

Fuel Control And Idle Air Control W/O Auto Trans, HD, 4-Spd, Overdrive:
Fuel Control And Idle Air Control W/O Auto Trans, HD, 4-Spd, Overdrive:
