Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Indicators
>>
With Indicator Lamps I/P
With Indicator Lamps I/P

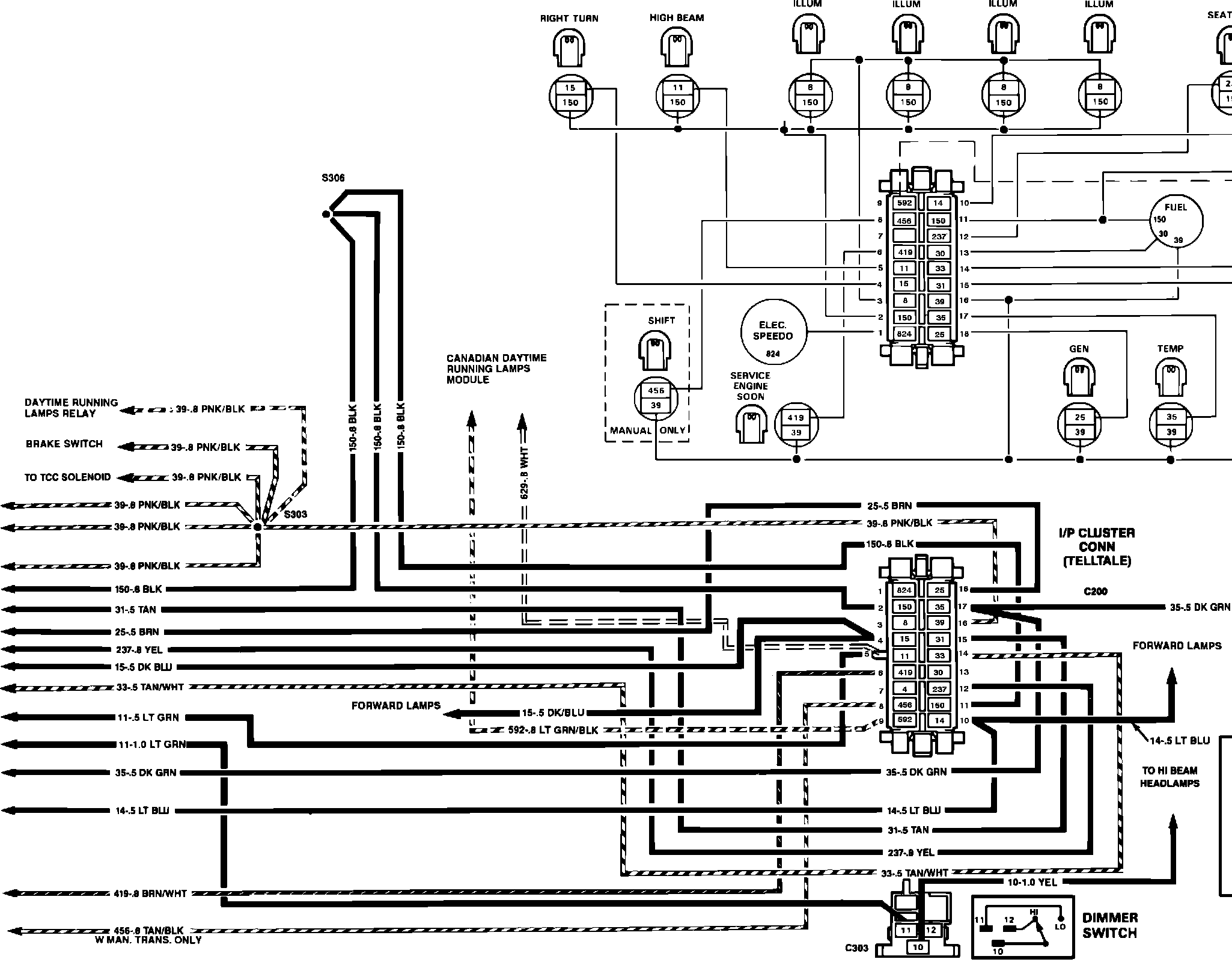

���AInstrument Panel: Indicators: With Indicator Lamps I/P:
���AInstrument Panel: Indicators: With Indicator Lamps I/P:
