Chevy Truck
>>
1990
>>
S10/T10 Blazer 2WD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
System Diagram
System Diagram

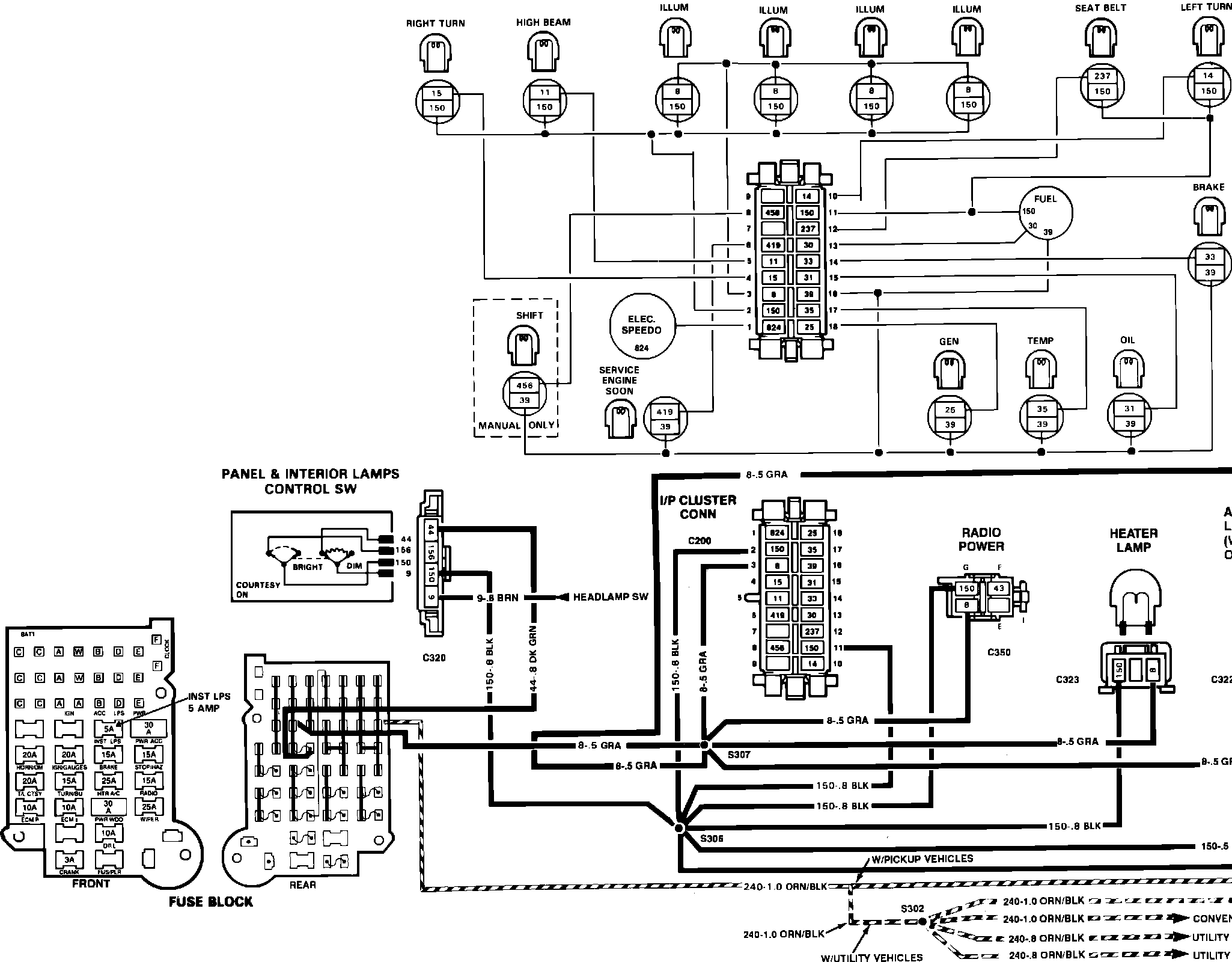

�lmBInstrument Panel Illumination/Indicator Lamps:
