Chevy Truck
>>
1990
>>
G 20 Van V8-379 6.2L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Starting System
>>
Standard Diesel
Standard Diesel

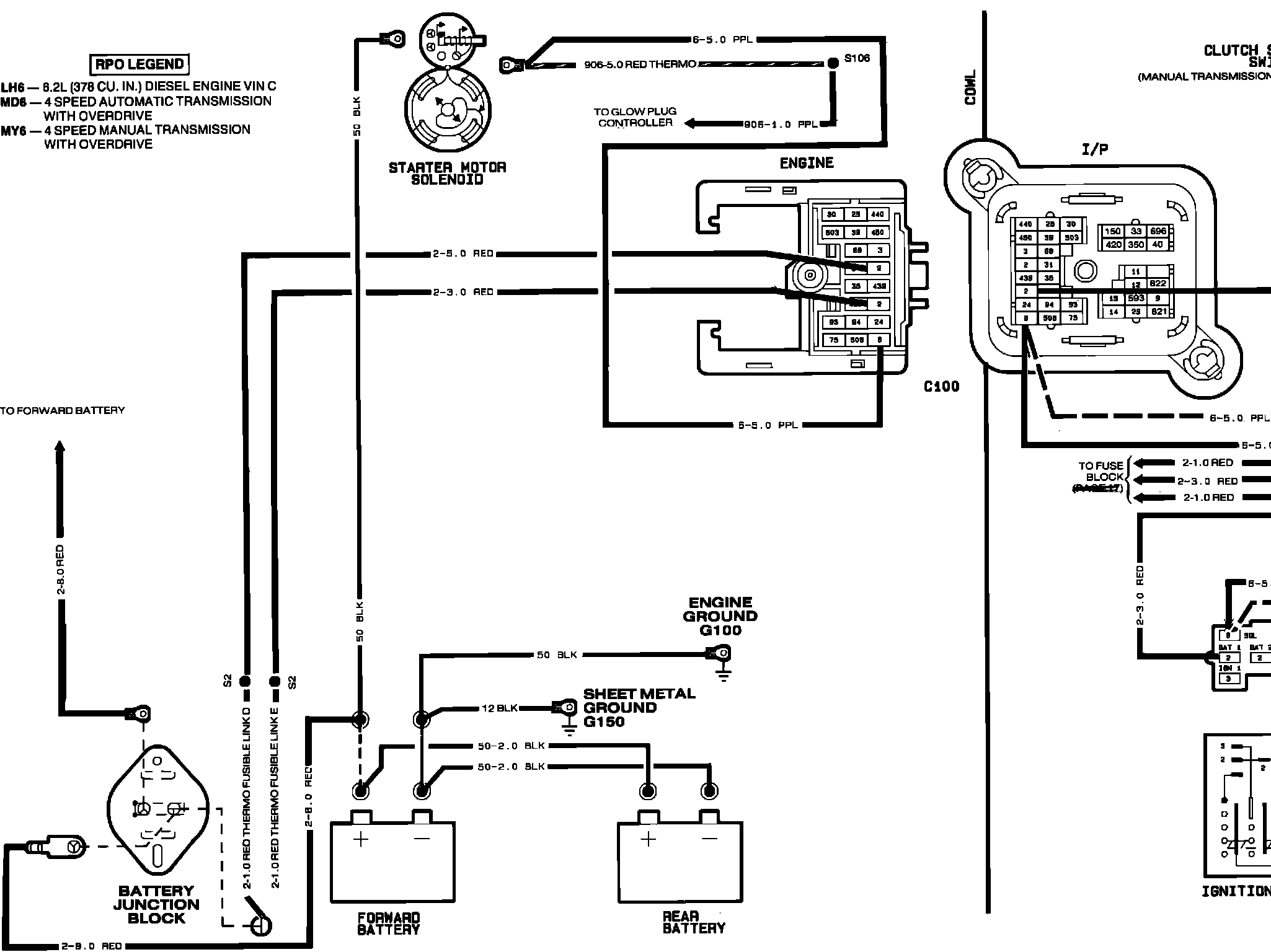

ZO�3Starting System (Standard Diesel):
