Home >> Chevy Truck >> 1989 >> S10/T10 Blazer 2WD L4-151 2.5L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Component Tests and General Diagnostics >> Instrument Cluster Diagnosis - Digital Dash

Instrument Cluster Diagnosis - Digital Dash

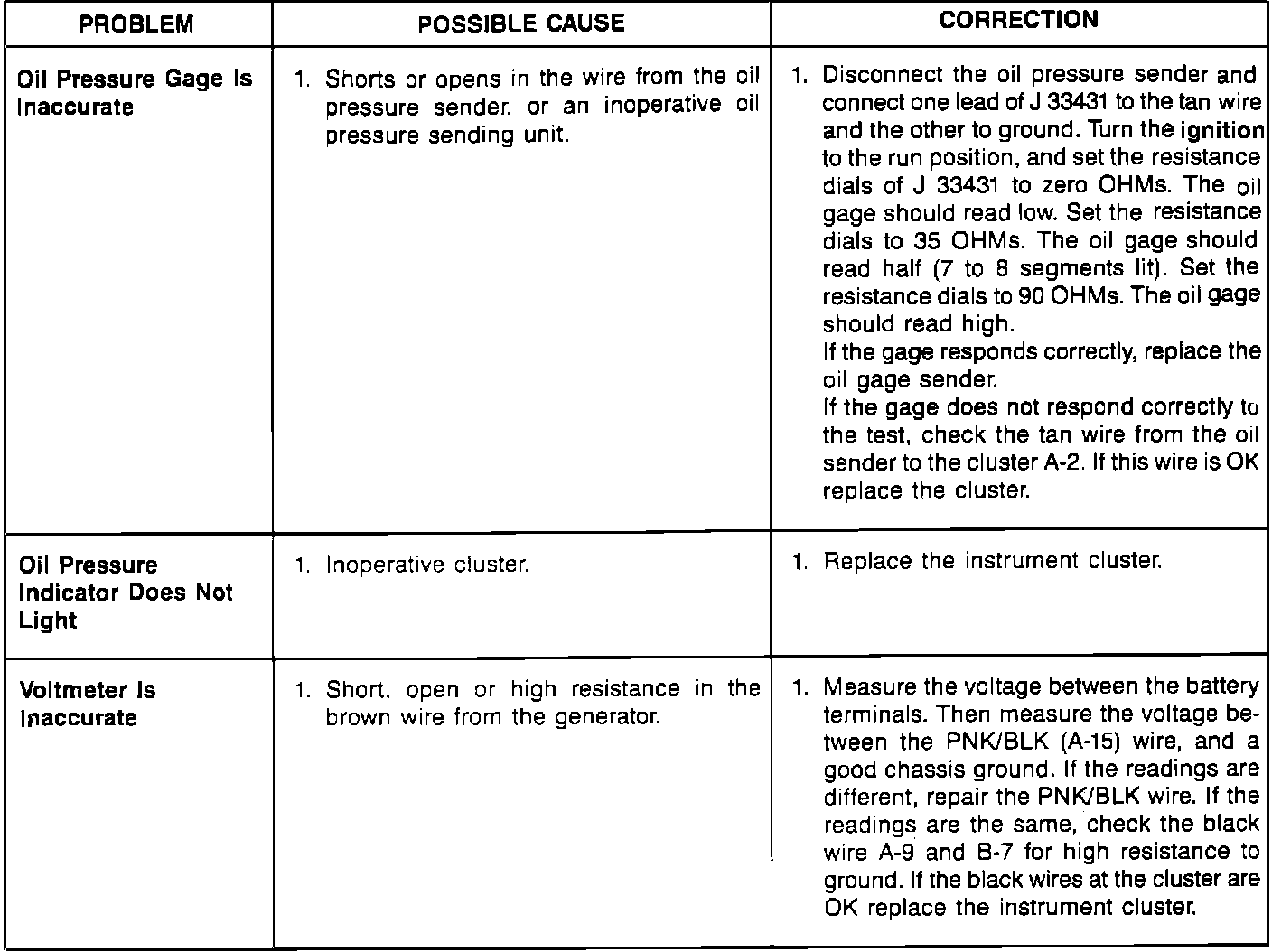

Electronic Instrument Cluster Diagnostics - Part 1 Of 3:



Electronic Instrument Cluster Diagnostics - Part 2 Of 3:



Electronic Instrument Cluster Diagnostics - Part 3 Of 3:
